N.º art. 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

GTIN 4013364271937, N.º de arancel aduanero (EU): 85389099, Peso bruto: 5.70 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

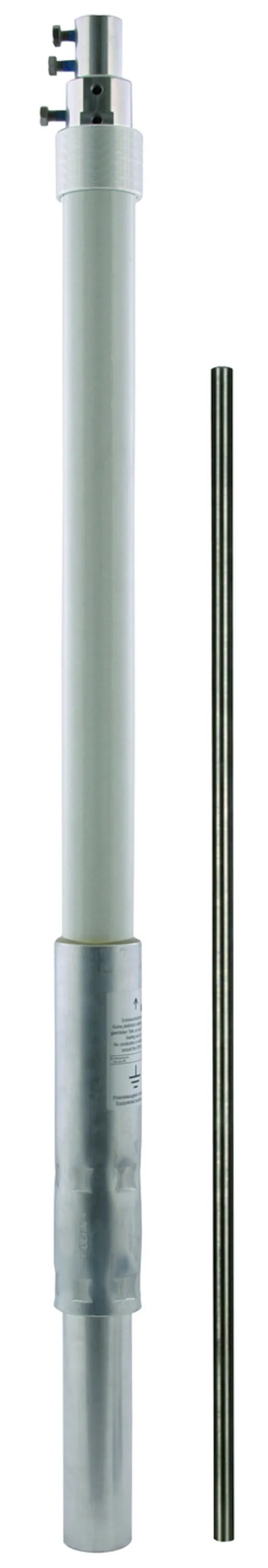

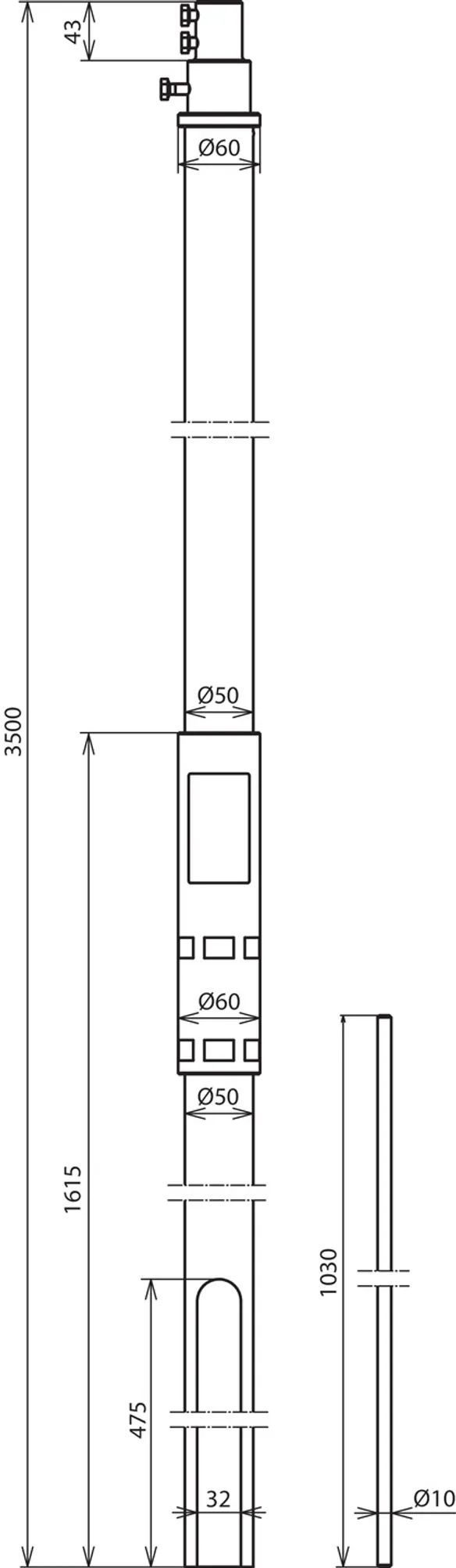

Supporting tube for HVI power Conductor with air-termation tip, 3500 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 3500 mm
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power outside) 190 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IA HVIP GFK AL
Part No.: 105563
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	3500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	3500 mm
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power outside) 190 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105563 a favoritos.

Ir a favoritos

El artículo 105563 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

GTIN 4013364271944, N.º de arancel aduanero (EU): 85389099, Peso bruto: 8.10 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductor with air-termination tip 5000 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 4000 mm
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power outside) 180 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IA HVIP GFK AL
Part No.: 105565
or equivalent.

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	4000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination tip (wall mounting)	4000 mm
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power inside) 201 km/h
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power outside) 180 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105565 a favoritos.

Ir a favoritos

El artículo 105565 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

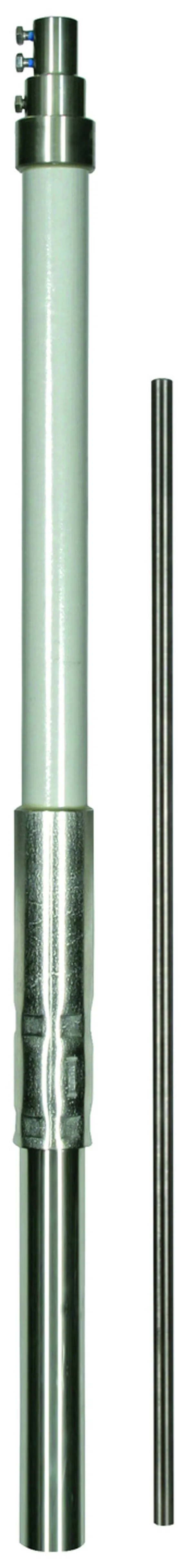

N.º art. 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

GTIN 4013364152373, N.º de arancel aduanero (EU): 85389099, Peso bruto: 10.60 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

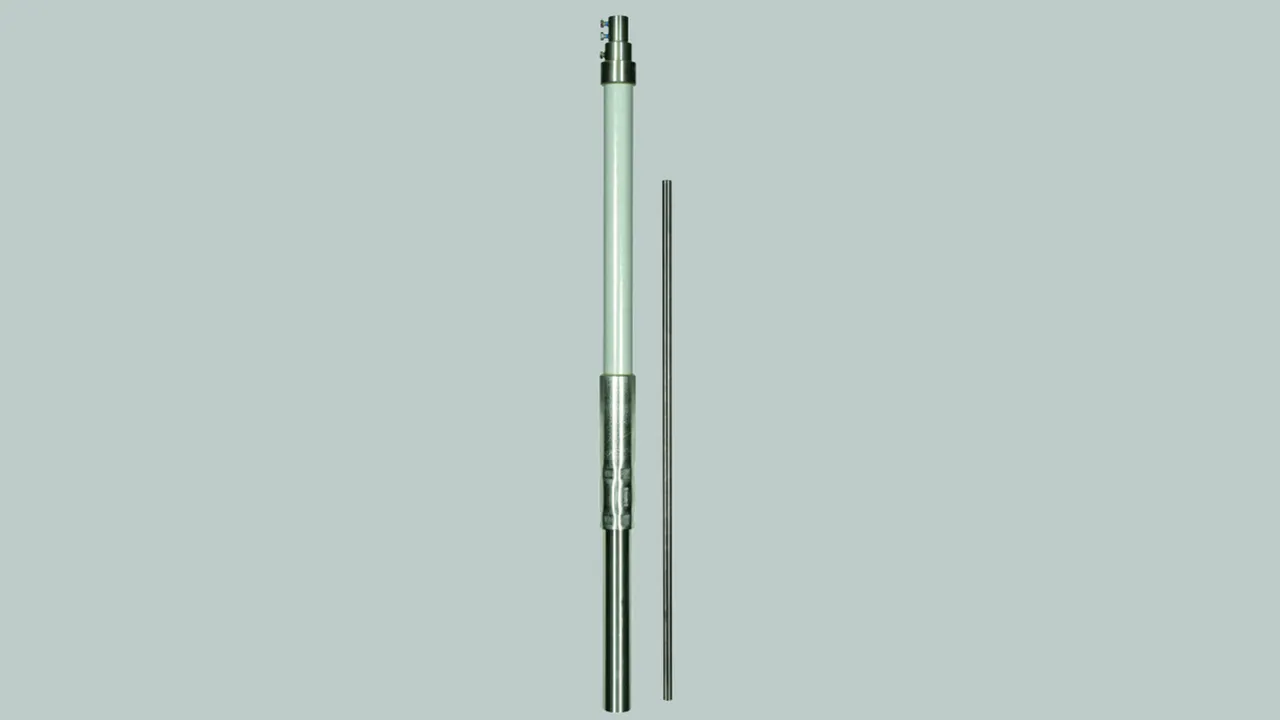

Supporting tube for HVI power Conductor with air-termination tip, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 3500 mm
Max. gust wind speed: (Max. free length 3,500 mm, 1x HVI power inside) 234 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IP HVIP GFK V2A
Part No.: 105320
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	3500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	3500 mm
Max. gust wind speed	(Max. free length 3,500 mm, 1x HVI power inside) 234 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105320 a favoritos.

Ir a favoritos

El artículo 105320 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

GTIN 4013364152380, N.º de arancel aduanero (EU): 85389099, Peso bruto: 15.80 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

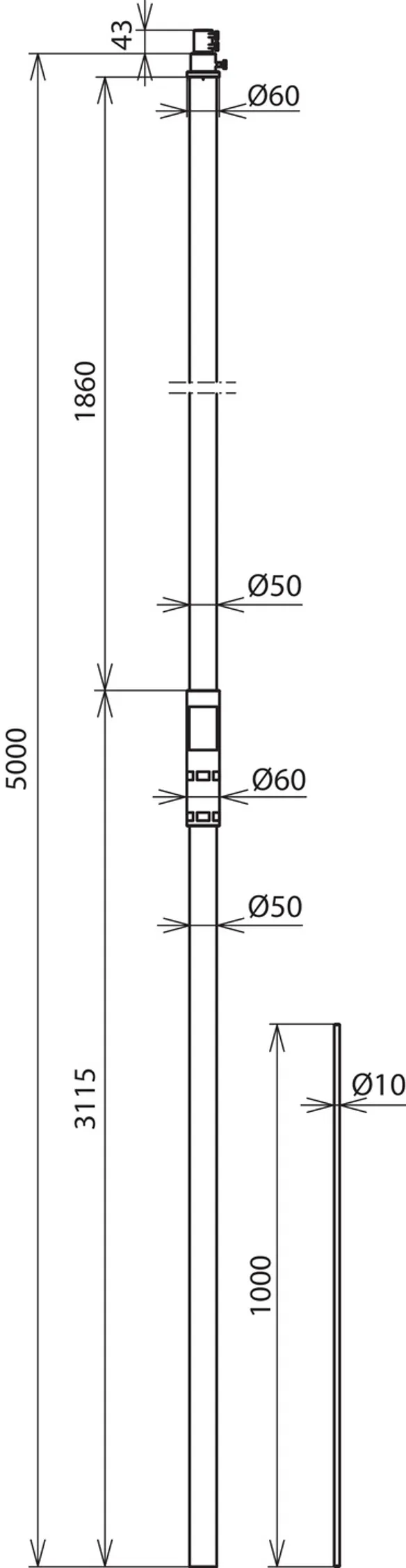

Supporting tube for HVI power Conductor with air-termination tip, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination tip (wall mounting): 4000 mm
Max. gust wind speed: (Max. free length 4,000 mm, 1x HVI power inside) 232 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IP HVIP GFK V2A
Part No.: 105322
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	4000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination tip (wall mounting)	4000 mm
Max. gust wind speed	(Max. free length 4,000 mm, 1x HVI power inside) 232 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105322 a favoritos.

Ir a favoritos

El artículo 105322 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

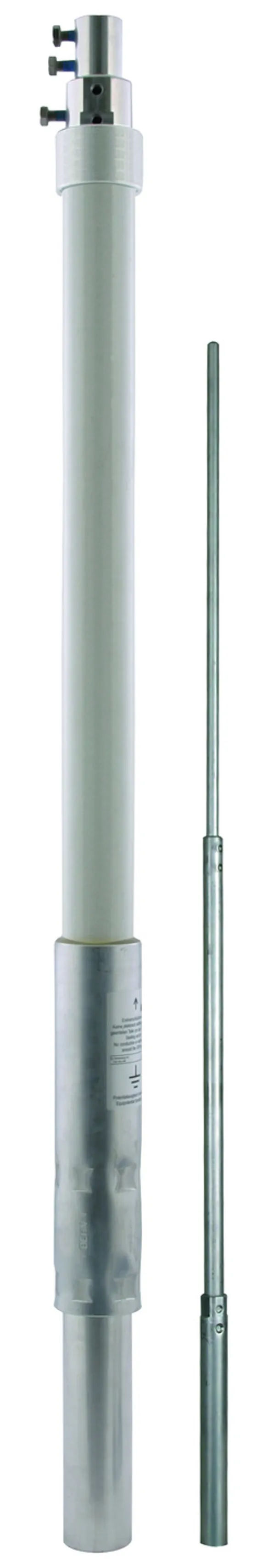

N.º art. 105573 SR D50 3500 FS2500 IA HVIP GFK AL

GTIN 4013364271975, N.º de arancel aduanero (EU): 85389099, Peso bruto: 6.56 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

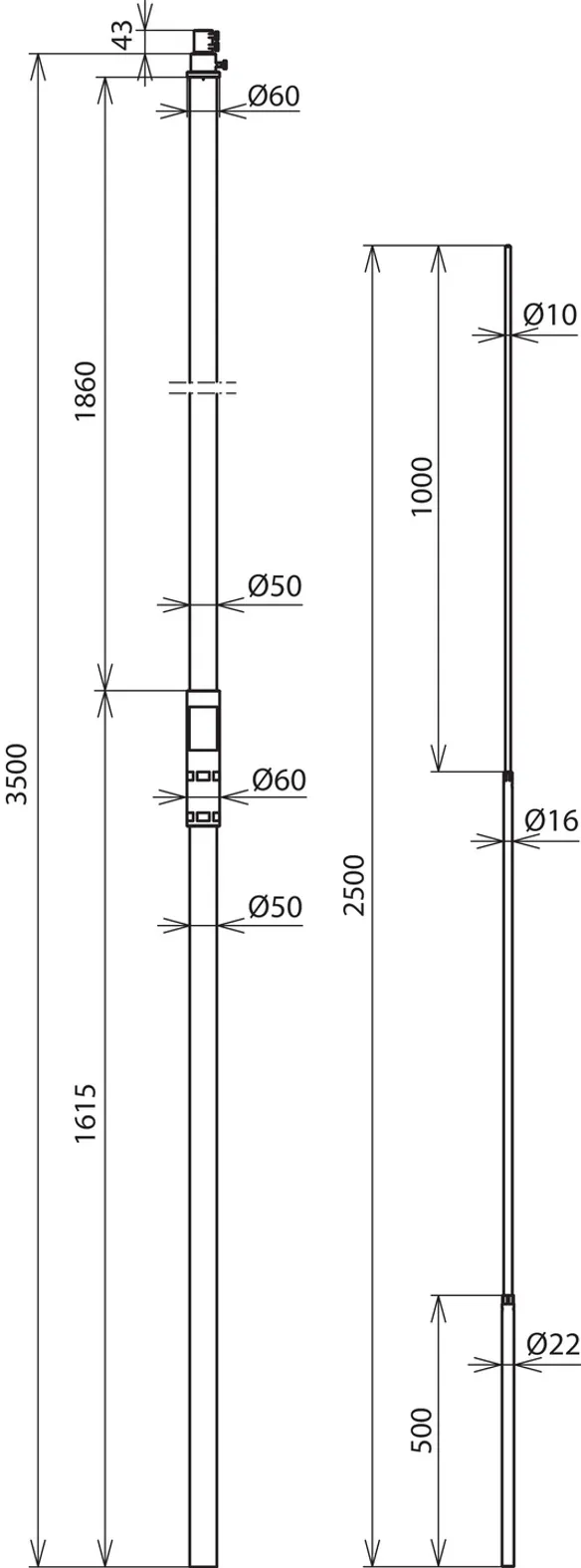

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power inside) 168 km/h
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power outside) 144 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS2500 IA HVIP GFK AL
Part No.: 105573
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5000 mm
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power inside) 168 km/h
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power outside) 144 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105573 a favoritos.

Ir a favoritos

El artículo 105573 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105575 SR D50 5000 FS2500 IA HVIP GFK AL

GTIN 4013364272026, N.º de arancel aduanero (EU): 85389099, Peso bruto: 8.90 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/Al
GRP/Al supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power inside) 163 km/h
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power outside) 140 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IA HVIP GFK AL
Part No.: 105575
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Max. free length with air-termination rod (wall mounting)	5500 mm
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power inside) 163 km/h
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power outside) 140 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105575 a favoritos.

Ir a favoritos

El artículo 105575 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

GTIN 4013364152397, N.º de arancel aduanero (EU): 85389099, Peso bruto: 12.20 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

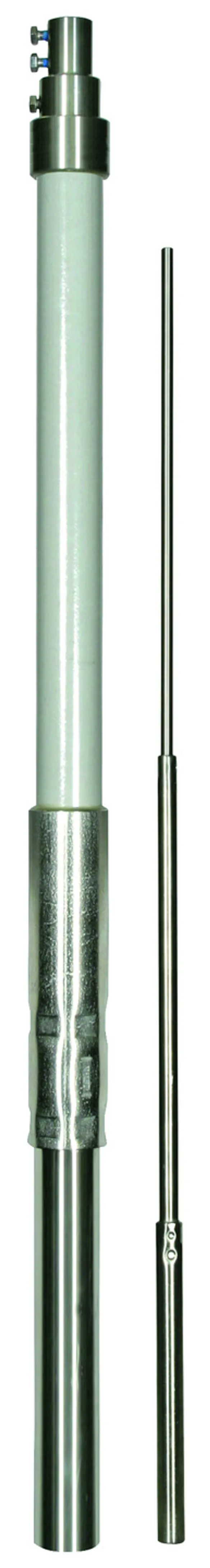

Supporting tube for HVI power Conductor with air-termination rod, 3500 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5000 mm
Max. gust wind speed: (Max. free length 5,000 mm, 1x HVI power inside) 163 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS22 10 2500 IP HVIP GFK V2A
Part No.: 105321
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5000 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5000 mm
Max. gust wind speed	(Max. free length 5,000 mm, 1x HVI power inside) 163 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105321 a favoritos.

Ir a favoritos

El artículo 105321 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

GTIN 4013364152403, N.º de arancel aduanero (EU): 85389099, Peso bruto: 16.30 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

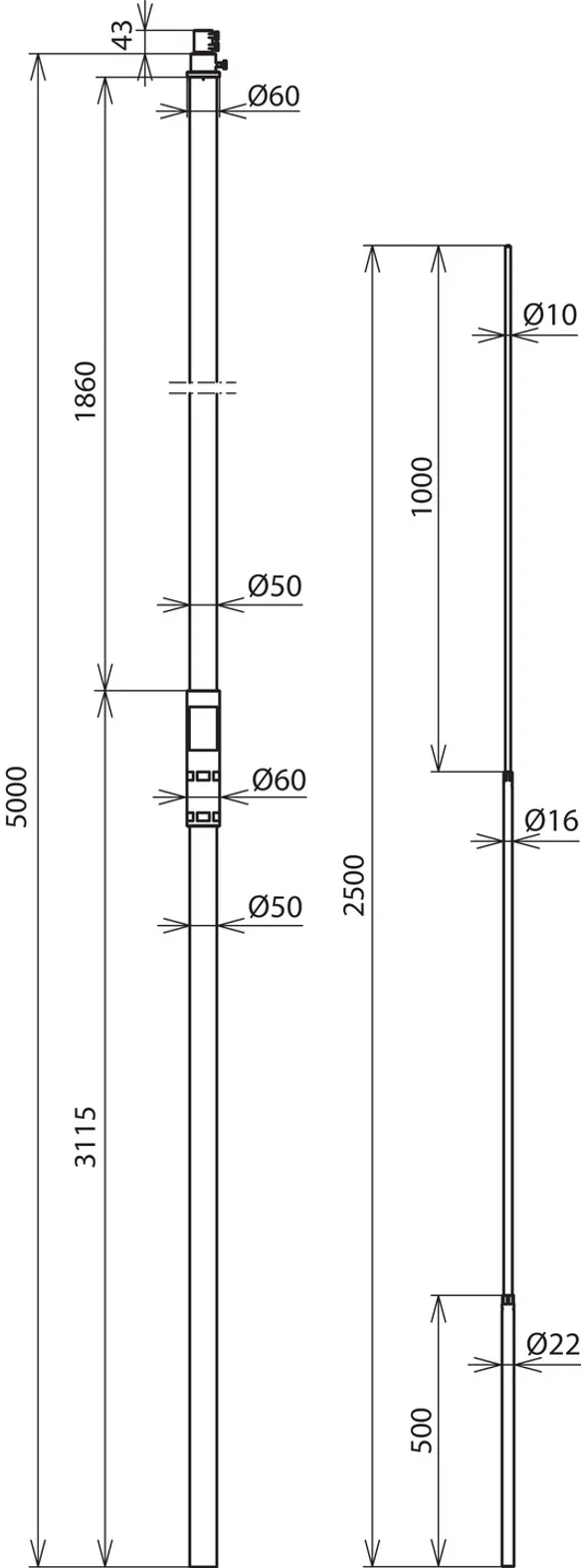

Supporting tube for HVI power Conductor with air-termination rod, 5000 mm long, GRP/StSt
GRP/StSt supporting tubes with internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from conductive parts according to IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination rod, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Max. free length with air-termination rod (wall mounting): 5500 mm
Max. gust wind speed: (Max. free length 5,500 mm, 1x HVI power inside) 159 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS22 10 2500 IP HVIP GFK V2A
Part No.: 105323
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5500 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Max. free length with air-termination rod (wall mounting)	5500 mm
Max. gust wind speed	(Max. free length 5,500 mm, 1x HVI power inside) 159 km/h
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105323 a favoritos.

Ir a favoritos

El artículo 105323 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

GTIN 4013364270282, N.º de arancel aduanero (EU): 85389099, Peso bruto: 5.50 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FSP1000 IA SA HVIP GFK AL
Part No.: 105513
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105513 a favoritos.

Ir a favoritos

El artículo 105513 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

GTIN 4013364271821, N.º de arancel aduanero (EU): 85389099, Peso bruto: 8.00 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tube with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FSP1000 IA SA HVIP GFK AL
Part No.: 105515
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	Al
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105515 a favoritos.

Ir a favoritos

El artículo 105515 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

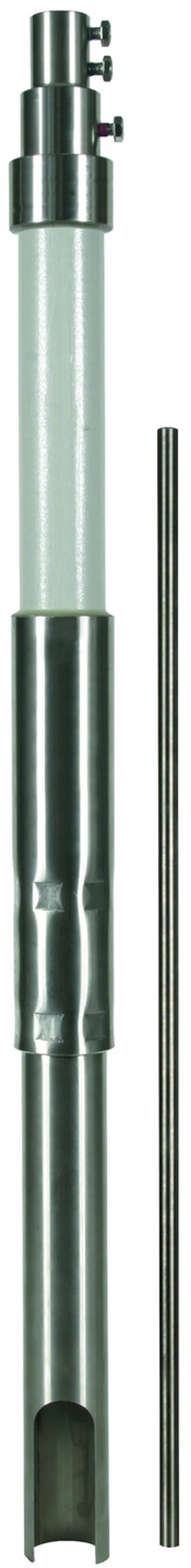

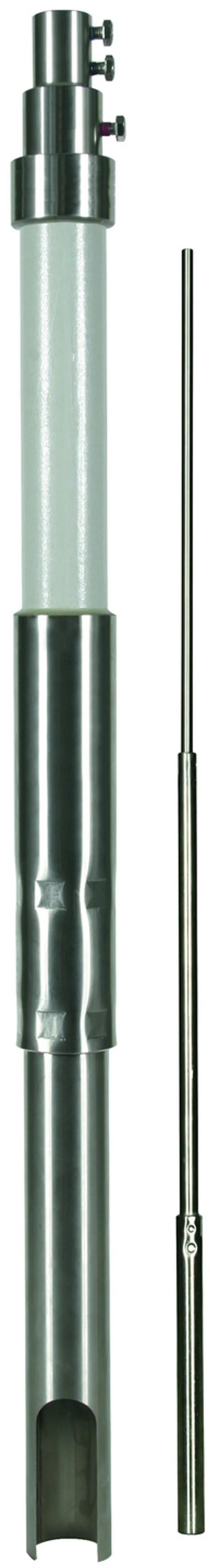

N.º art. 105392 SR D50 3500 FS1000 IP SA HVIP GFK V2A

GTIN 4013364157903, N.º de arancel aduanero (EU): 85389099, Peso bruto: 10.20 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with side outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS1000 IP SA HVIP GFK V2A
Part No.: 105392
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105392 a favoritos.

Ir a favoritos

El artículo 105392 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105394 SR D50 5000 FS1000 IP SA HVIP GFK V2A

GTIN 4013364157910, N.º de arancel aduanero (EU): 85389099, Peso bruto: 15.10 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø10 mm, length of 1000 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS1000 IP SA HVIP GFK V2A
Part No.: 105394
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105394 a favoritos.

Ir a favoritos

El artículo 105394 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105543 SR D50 3500 FS2500 IA SA HVIP GFK AL

GTIN 4013364271845, N.º de arancel aduanero (EU): 85389099, Peso bruto: 6.40 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 3500 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 3500 FS2500 IA SA HVIP GFK AL
Part No.: 105543
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	3500 mm
Outside diameter Ø	50 mm
Transport length	3500 mm
Wall thickness	4 mm
Material factor km	0.7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105543 a favoritos.

Ir a favoritos

El artículo 105543 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105545 SR D50 5000 FS2500 IA SA HVIP GFK AL

GTIN 4013364271876, N.º de arancel aduanero (EU): 85389099, Peso bruto: 8.90 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/Al, with lateral outlet
GRP/Al supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, Al
Material of supporting tube: GRP / Al
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IA SA HVIP GFK AL
Part No.: 105545
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	yes
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	Al
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0,7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	yes
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105545 a favoritos.

Ir a favoritos

El artículo 105545 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

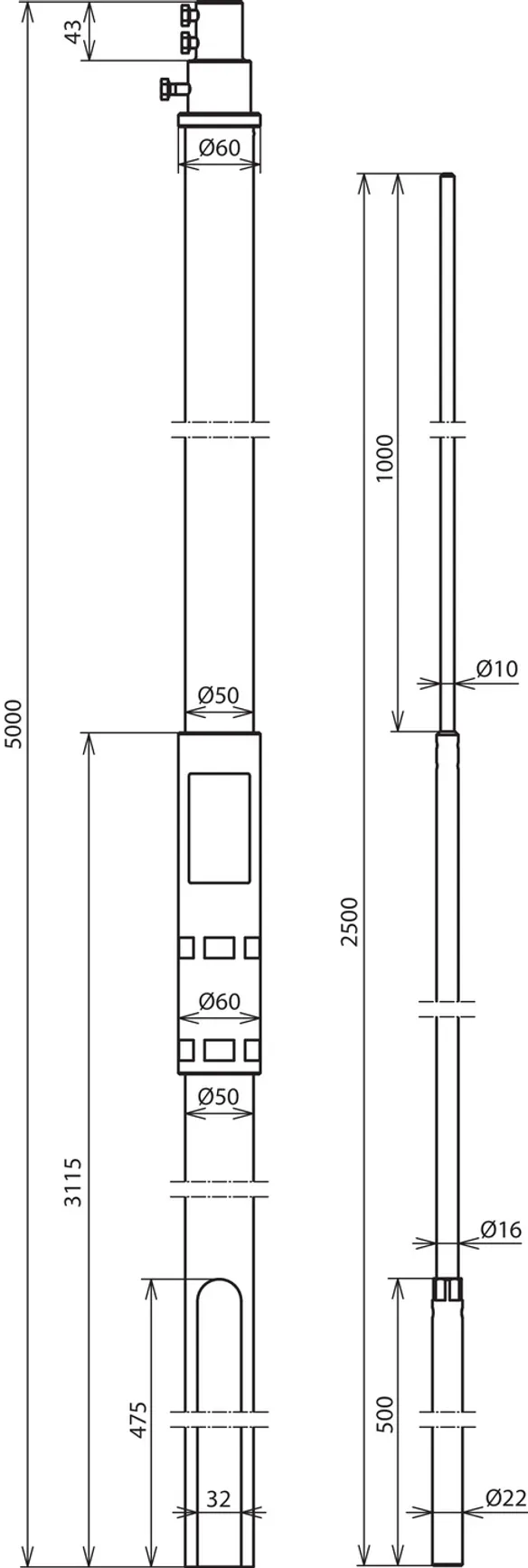

N.º art. 105395 SR D50 5000 FS2500 IP SA HVIP GFK V2A

GTIN 4013364157934, N.º de arancel aduanero (EU): 85389099, Peso bruto: 17.12 kg, Empaquetado: 1.00 pc(s)

Figuras

Open PDF

Más información

Archivos CAD

Supporting tube for HVI power Conductors, GRP/StSt, with lateral outlet
GRP/StSt supporting tubes with lateral outlet,
internal sealing end and EB spring element for HVI power Conductors
for keeping the separation distance from electrically conductive parts as per IEC/EN 62305-3
The supporting tubes are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one element
Combined with air-termination tip, Ø22/16/10 mm, length of 2500 mm, StSt
Material of supporting tube: GRP / StSt
Length of supporting tube: 5000 mm
Outside diameter Ø : 50 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D50 5000 FS2500 IP SA HVIP GFK V2A
Part No.: 105395
or equivalent.

Certificados

Datos técnicos

Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Length of insulating clearance	1800 mm
Suitable for installation outside the tube	no
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination rod	StSt
Length of air-termination rod	2500 mm
Material of supporting tube	GRP / StSt
Length of supporting tube	5000 mm
Outside diameter Ø	50 mm
Transport length	5000 mm
Wall thickness	4 mm
Material factor km	0,7
Length of insulating clearance	1800 mm
Permanent temperature range	-50 °C ... +100 °C
Type	UV stabilised
Sleeve	60 x 5 mm
Suitable for installation outside the tube	no
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Se ha añadido el artículo 105395 a favoritos.

Ir a favoritos

El artículo 105395 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Supporting Tubes for HVI power Conductor / HVI power long Conductor

With air-termination tip

N.º art. 105563 SR D50 3500 FSP1000 IA HVIP GFK AL

Debe estar registrado para descargar 105563.stp.

Debe estar registrado para descargar 105563.igs.

Debe estar registrado para descargar 105563.jt.

Debe estar registrado para descargar 105563.dwg.

Debe estar registrado para descargar 105320m_D.dxf.

Se ha añadido el artículo 105563 a favoritos.

El artículo 105563 ha sido añadido a la cesta de compra.

N.º art. 105565 SR D50 5000 FSP1000 IA HVIP GFK AL

Debe estar registrado para descargar 105565.stp.

Debe estar registrado para descargar 105565.igs.

Debe estar registrado para descargar 105565.jt.

Debe estar registrado para descargar 105565.dwg.

Debe estar registrado para descargar 105322m_D.dxf.

Se ha añadido el artículo 105565 a favoritos.

El artículo 105565 ha sido añadido a la cesta de compra.

N.º art. 105320 SR D50 3500 FSP1000 IP HVIP GFK V2A

Debe estar registrado para descargar 105320.stp.

Debe estar registrado para descargar 105320.igs.

Debe estar registrado para descargar 105320.jt.

Debe estar registrado para descargar 105320.dwg.

Debe estar registrado para descargar 105320m_D.dxf.

Se ha añadido el artículo 105320 a favoritos.

El artículo 105320 ha sido añadido a la cesta de compra.

N.º art. 105322 SR D50 5000 FSP1000 IP HVIP GFK V2A

Debe estar registrado para descargar 105322.stp.

Debe estar registrado para descargar 105322.igs.

Debe estar registrado para descargar 105322.jt.

Debe estar registrado para descargar 105322.dwg.

Debe estar registrado para descargar 105322m_D.dxf.

Se ha añadido el artículo 105322 a favoritos.

El artículo 105322 ha sido añadido a la cesta de compra.

With air-termination rod

N.º art. 105573 SR D50 3500 FS2500 IA HVIP GFK AL

Debe estar registrado para descargar 105573.stp.

Debe estar registrado para descargar 105573.igs.

Debe estar registrado para descargar 105573.jt.

Debe estar registrado para descargar 105573.dwg.

Debe estar registrado para descargar 105321m_D.dxf.

Se ha añadido el artículo 105573 a favoritos.

El artículo 105573 ha sido añadido a la cesta de compra.

N.º art. 105575 SR D50 5000 FS2500 IA HVIP GFK AL

Debe estar registrado para descargar 105575.stp.

Debe estar registrado para descargar 105575.igs.

Debe estar registrado para descargar 105575.jt.

Debe estar registrado para descargar 105575.dwg.

Debe estar registrado para descargar 105323m_D.dxf.

Se ha añadido el artículo 105575 a favoritos.

El artículo 105575 ha sido añadido a la cesta de compra.

N.º art. 105321 SR D50 3500 FS22 10 2500 IP HVIP GFK V2A

Debe estar registrado para descargar 105321.stp.

Debe estar registrado para descargar 105321.igs.

Debe estar registrado para descargar 105321.jt.

Debe estar registrado para descargar 105321.dwg.

Debe estar registrado para descargar 105321m_D.dxf.

Se ha añadido el artículo 105321 a favoritos.

El artículo 105321 ha sido añadido a la cesta de compra.

N.º art. 105323 SR D50 5000 FS22 10 2500 IP HVIP GFK V2A

Debe estar registrado para descargar 105323.stp.

Debe estar registrado para descargar 105323.igs.

Debe estar registrado para descargar 105323.jt.

Debe estar registrado para descargar 105323.dwg.

Debe estar registrado para descargar 105323m_D.dxf.

Se ha añadido el artículo 105323 a favoritos.

El artículo 105323 ha sido añadido a la cesta de compra.

With air-termination tip and side outlet

N.º art. 105513 SR D50 3500 FSP1000 IA SA HVIP GFK AL

Debe estar registrado para descargar 105513.stp.

Debe estar registrado para descargar 105513.igs.

Debe estar registrado para descargar 105513.jt.

Debe estar registrado para descargar 105513.dwg.

Debe estar registrado para descargar 105392m_D.dxf.

Se ha añadido el artículo 105513 a favoritos.

El artículo 105513 ha sido añadido a la cesta de compra.

N.º art. 105515 SR D50 5000 FSP1000 IA SA HVIP GFK AL

Debe estar registrado para descargar 105515.stp.

Debe estar registrado para descargar 105515.igs.

Debe estar registrado para descargar 105515.jt.
