Roof Conductor Holders for Flat Roofs with Fixing Bores

For the installation of air-termination systems on flat roofs and walls.

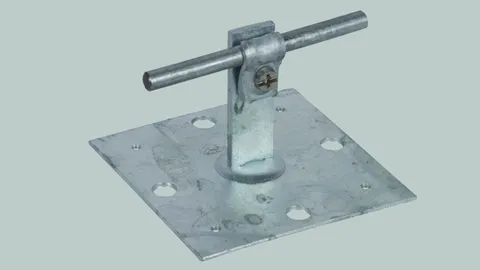

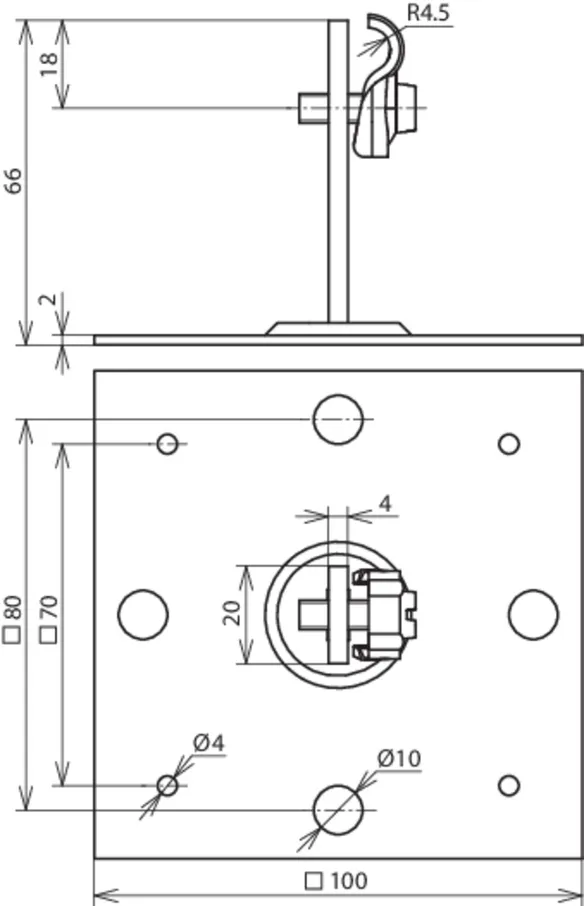

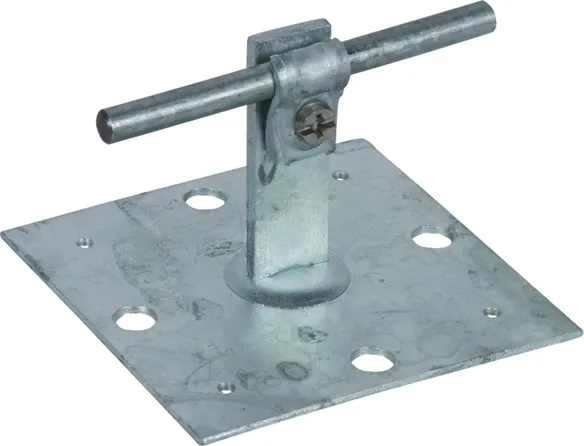

Type St/tZn, large

With conductor holder DEHNQUICK, fixed conductor leading, height up to the middle of the conductor 60 mm.

1 Producto

N.º art. 202060 DLH DQ 6.10 GP100X100 STTZN

GTIN 4013364022263, N.º de arancel aduanero (EU): 85389099, Peso bruto: 230.96 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Roof conductor holder for flat roofs with fixing holes
Roof conductor holder for flat roofs with fixing holes for installation of air-termination systems on flat
roofs and walls
With DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Dimension: 100 x 100 mm
Material of roof conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 GP100X100 STTZN
Part No.: 202060
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder St/tZn
Dimension 100 x 100 mm
Fixing [4x] Ø4 / [4x] Ø10 mm
Material of roof conductor holder St/tZn
Conductor holder support Rd 6-10 mm

Se ha añadido el artículo 202060 a favoritos.

Ir a favoritos

El artículo 202060 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

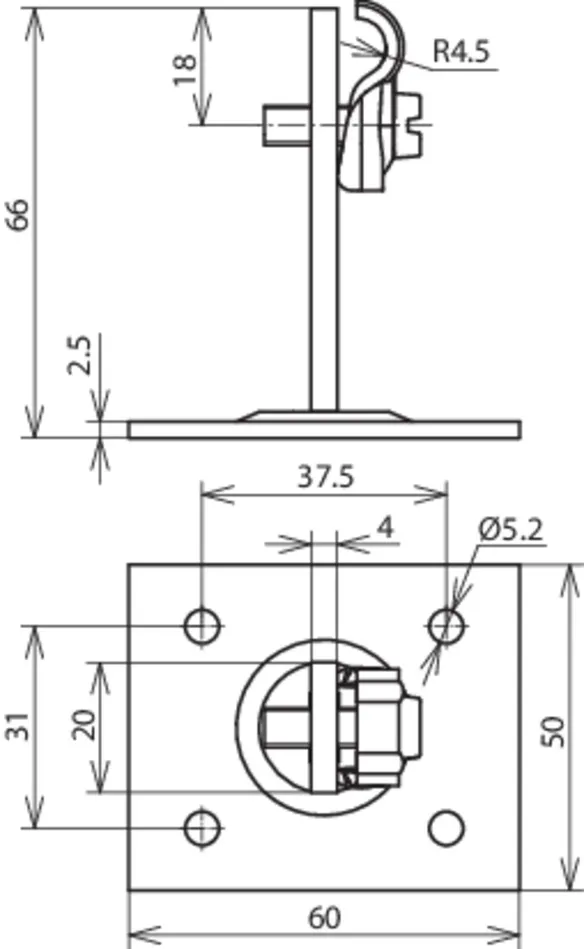

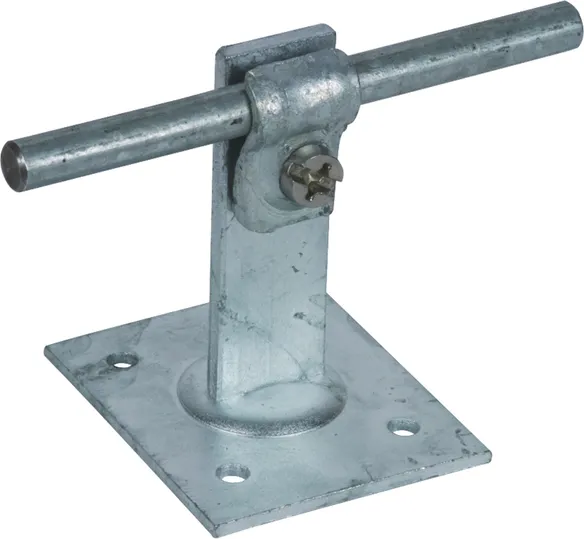

Type St/tZn, small

With conductor holder DEHNQUICK, fixed conductor leading, height up to the middle of the conductor 60 mm.

1 Producto

N.º art. 202030 DLH DQ 6.10 GP50X60 STTZN

GTIN 4013364022362, N.º de arancel aduanero (EU): 85389099, Peso bruto: 116.30 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Roof conductor holder for flat roofs with fixing holes
Roof conductor holder for flat roofs with fixing holes for installation of air-termination systems on flat
roofs and walls
With DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Dimension: 50 x 60 mm
Material of roof conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 GP50X60 STTZN
Part No.: 202030
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder St/tZn
Dimension 50 x 60 mm
Fixing [4x] Ø5.2 mm
Material of roof conductor holder St/tZn
Conductor holder support Rd 6-10 mm

Se ha añadido el artículo 202030 a favoritos.

Ir a favoritos

El artículo 202030 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

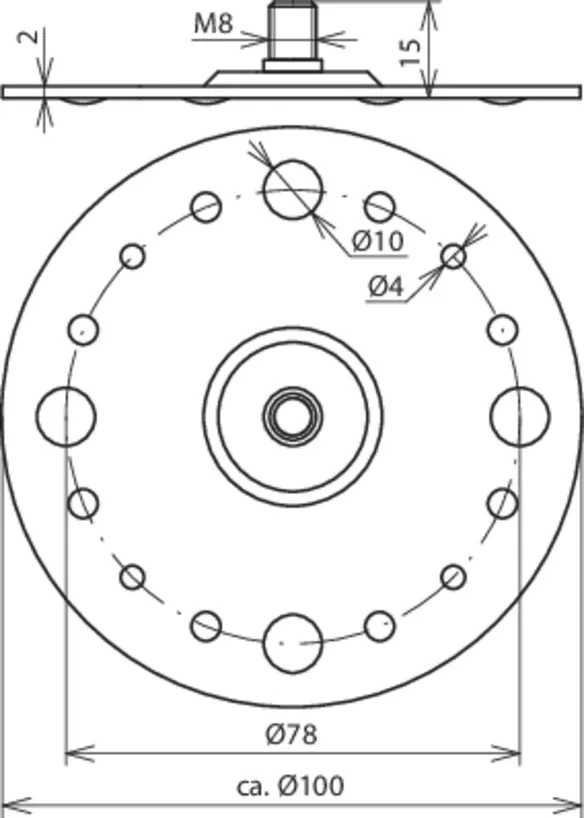

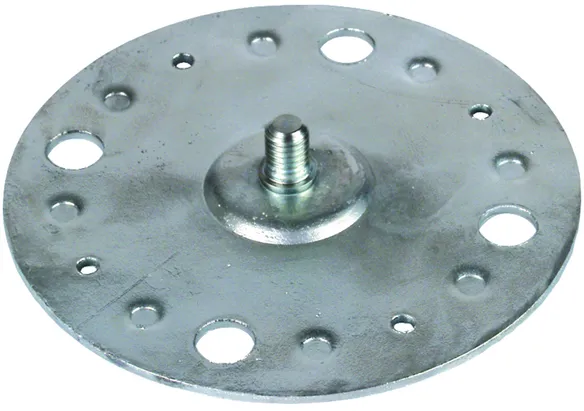

Round fixing plate St/tZn, large

Plate with threaded bolt M8, e.g. for DEHNsnap or DEHNhold for use e.g. at roofing felt, concrete, steel and brickwork.

1 Producto

N.º art. 297015 BP D100 GBM8 4XB10 4XB4 STTZN

GTIN 4013364023383, N.º de arancel aduanero (EU): 73269098, Peso bruto: 135.40 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Roof conductor holder for flat roofs with fixing holes
Roof conductor holder for flat roofs with fixing holes for installation of air-termination systems on flat
roofs and walls
Plate with threaded bolt M8, e.g. for DEHNsnap or twin screw cleat,
for application at e.g. cardboard roofs, concrete, steel and brickwork
Material of roof conductor holder: St/tZn
Dimension: approx. Ø100 mm

Brand: DEHN
Type: BP D100 GBM8 4XB10 4XB4 STTZN
Part No.: 297015
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder St/tZn
Dimension approx. Ø100 mm
Fixing [4x] Ø4 / [4x] Ø10 mm

Se ha añadido el artículo 297015 a favoritos.

Ir a favoritos

El artículo 297015 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

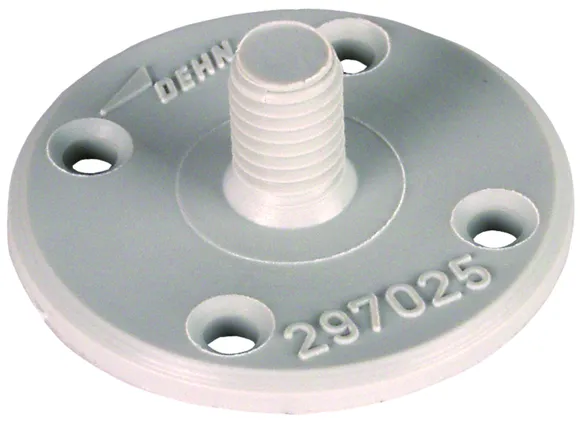

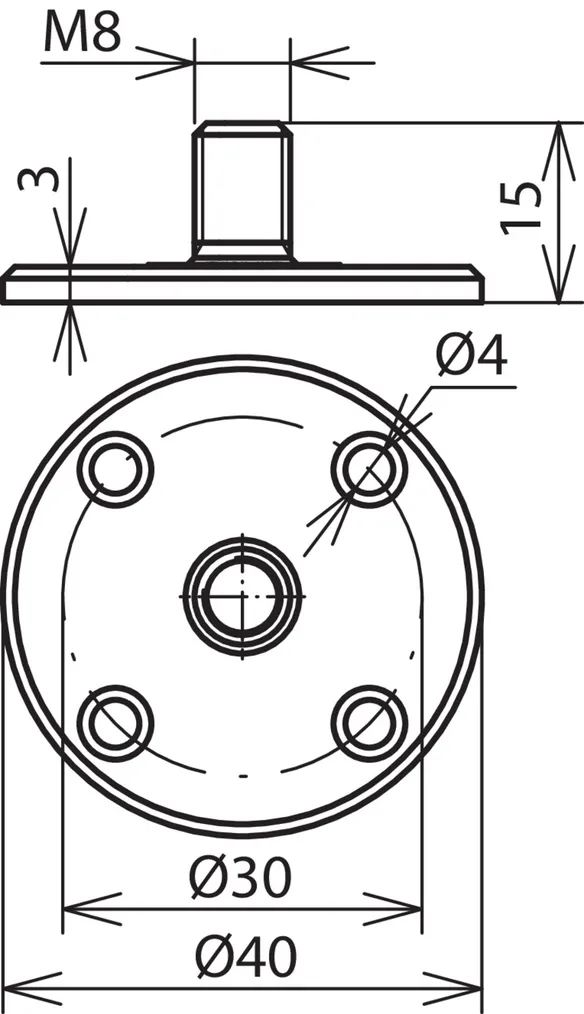

Round fixing plate plastic, small

Plate with threaded bolt M8, e.g. for DEHNsnap or DEHNhold for use e.g. at roofing felt, concrete, steel and brickwork.

1 Producto

N.º art. 297025 BP D40 GBM8 4XB4 K GR

GTIN 4013364023390, N.º de arancel aduanero (EU): 39269097, Peso bruto: 5.40 g, Empaquetado: 100.00 pc(s)

Figuras

Más información

Roof conductor holder for flat roofs with fixing holes
Roof conductor holder for flat roofs with fixing holes for installation of air-termination systems on flat
roofs and walls
Plate with threaded M8 bolt, e.g. for DEHNsnap or twin screw cleat,
for application at e.g. cardboard roofs, concrete, steel and brickwork
Material of roof conductor holder: plastic
Dimension: Ø40 mm

Brand: DEHN
Type: BP D40 GBM8 4XB4 K GR
Part No.: 297025
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder plastic
Colour grey ●
Dimension Ø40 mm
Fixing [4x] Ø4 mm

Se ha añadido el artículo 297025 a favoritos.

Ir a favoritos

El artículo 297025 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
