Roof Conductor Holders with Preformed Brace for Roof Surfaces

For hooking onto the seams of roof tiles.

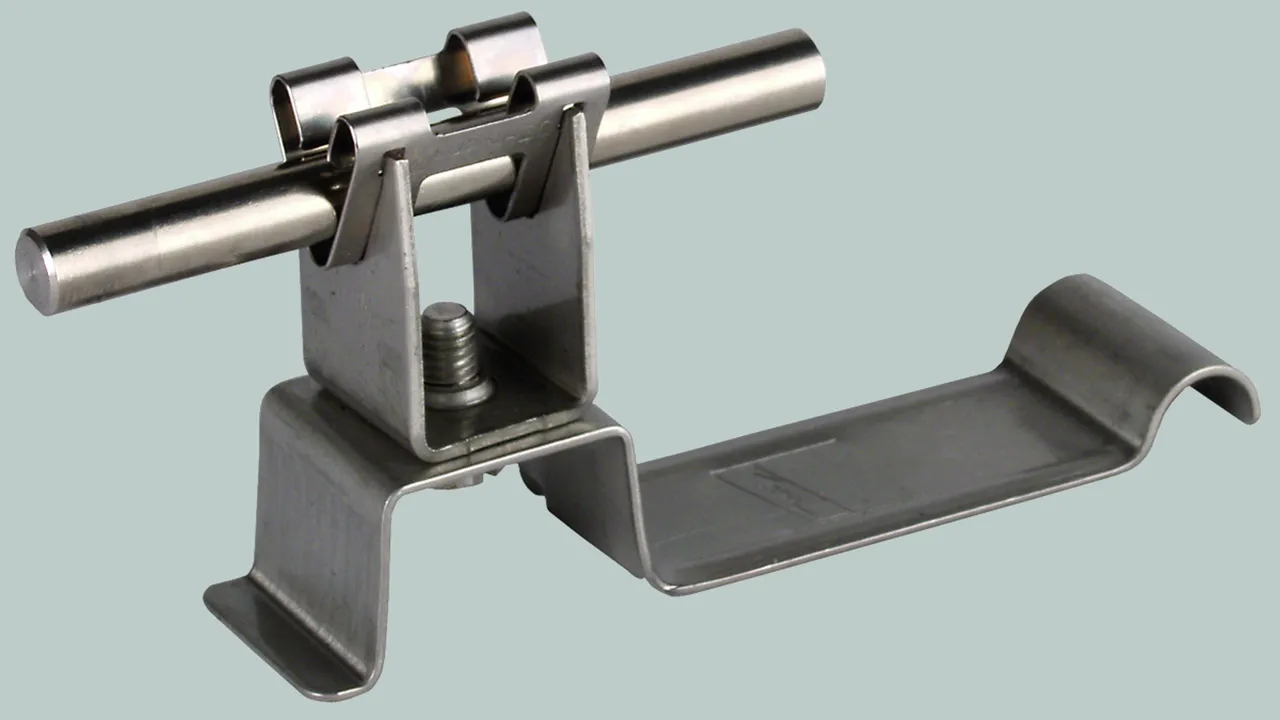

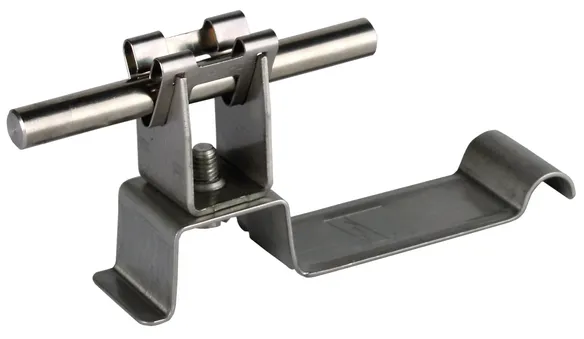

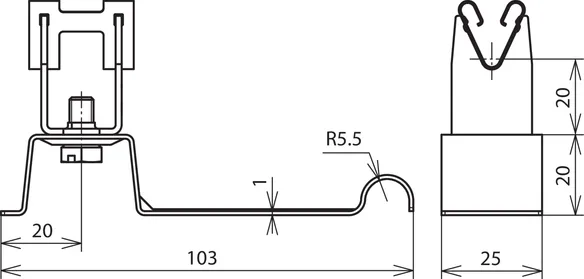

For hooking onto the lower seam, with DEHNgrip conductor holder

Loose conductor leading.

1 Producto

N.º art. 206349 DLH DG 8 H20 L103 EH V2A

GTIN 4013364047716, N.º de arancel aduanero (EU): 85389099, Peso bruto: 50.20 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Pitched roofs - roof conductor holder for hooking onto the lower groove, StSt
Roof conductor holder with preformed brace for tile slots
For hooking onto the lower seam of pantiled roofs, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 20 mm
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L103 EH V2A
Part No.: 206349
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace 103 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206349 a favoritos.

Ir a favoritos

El artículo 206349 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

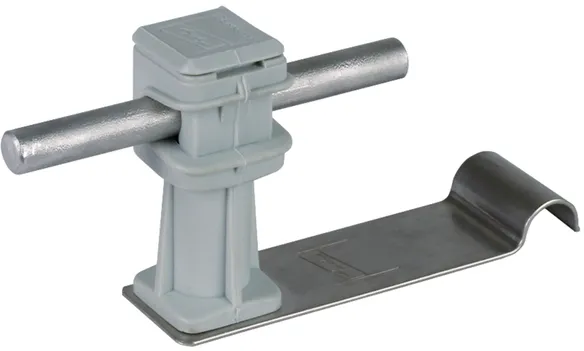

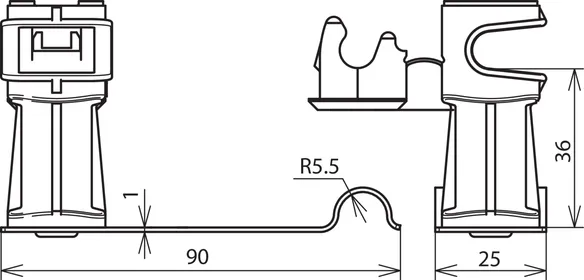

For hooking onto the lower seam, with DEHNsnap conductor holder

For hooking onto the lower seam of the pantile, with DEHNsnap conductor holder, loose conductor leading, brace length 90 mm.

2 Productos

N.º art. 204229 DLH DS 8 H36 L90 EH GR V2A

GTIN 4013364035300, N.º de arancel aduanero (EU): 85389099, Peso bruto: 33.40 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Pitched roofs - roof conductor holder for hooking at the lower groove, StSt, grey
Roof conductor holder with preformed brace for tile slots
For hooking onto the lower seam of the roof tile, with DEHNsnap conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L90 EH GR V2A
Part No.: 204229
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace 90 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204229 a favoritos.

Ir a favoritos

El artículo 204229 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

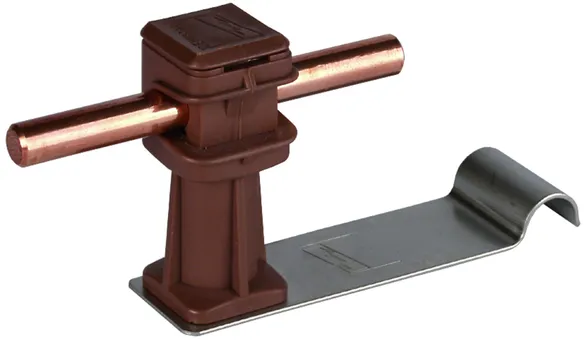

N.º art. 204239 DLH DS 8 H36 L90 EH BR V2A

GTIN 4013364035317, N.º de arancel aduanero (EU): 85389099, Peso bruto: 33.50 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Pitched roofs - roof conductor holder for hooking at the lower groove, StSt, brown
Roof conductor holder with preformed brace for tile slots
For hooking onto the lower seam of the roof tile, with DEHNsnap conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L90 EH BR V2A
Part No.: 204239
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace 90 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204239 a favoritos.

Ir a favoritos

El artículo 204239 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

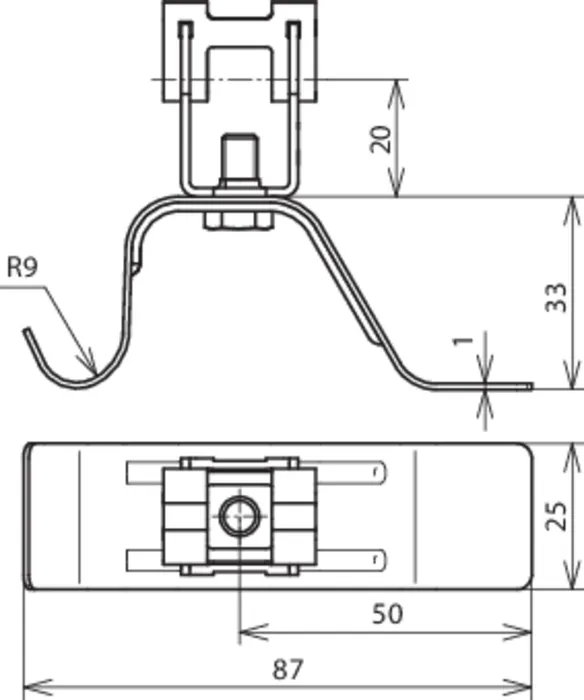

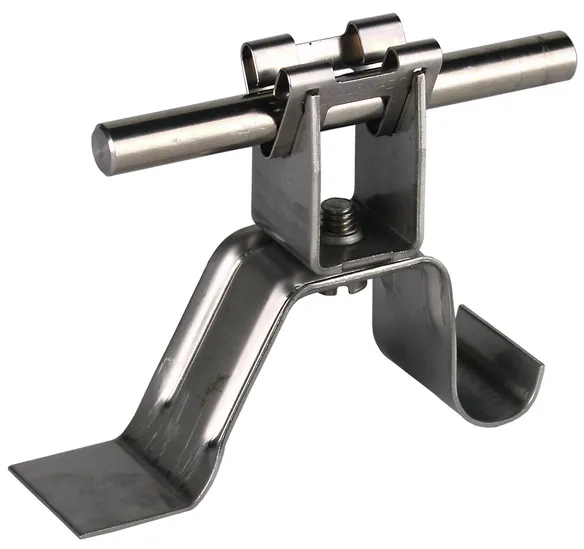

For hooking onto the upper seam, with DEHNgrip conductor holder

For hooking onto the seam of roof tiles, with DEHNgrip conductor holder, loose conductor leading, brace length 87 mm.

1 Producto

N.º art. 206369 DLH DG 8 H20 L87 EH V2A

GTIN 4013364086494, N.º de arancel aduanero (EU): 85389099, Peso bruto: 52.30 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Pitched roofs - roof conductor holder for hooking at the upper groove, StSt
Roof conductor holder with preformed brace for tile slots
For hooking onto the upper seam of the roof tile, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Height of conductor holder: 20 mm
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L87 EH V2A
Part No.: 206369
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace 87 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206369 a favoritos.

Ir a favoritos

El artículo 206369 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
