Roof Conductor Holders with Clamping Device for Roof Surfaces

For fixing air-termination and down conductors.

PLATTENsnap

Fixed on overlapping constructions, with conductor holder DEHNsnap, loose conductor routing.

2 Productos

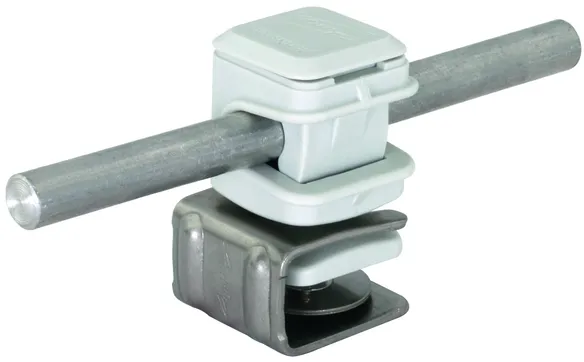

N.º art. 204069 LH PS 8 H16 KB4.6 GR V2A

GTIN 4013364032675, N.º de arancel aduanero (EU): 85389099, Peso bruto: 33.20 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

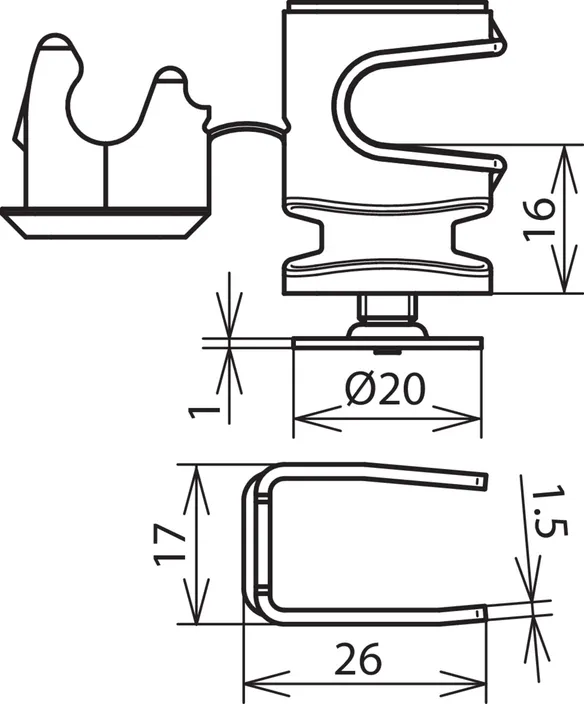

PLATTENsnap roof conductor holder for gable roofs, height 16 mm, StSt, grey
Roof conductor holder with clamping device for roof surfaces, for fixing air-termination and down conductors
Fixed on overlapping constructions
Material of roof conductor holder: StSt
Clamping range: 4-6 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH PS 8 H16 KB4.6 GR V2A
Part No.: 204069
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 4-6 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204069 a favoritos.

Ir a favoritos

El artículo 204069 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 204079 LH PS 8 H16 KB4.6 BR V2A

GTIN 4013364032668, N.º de arancel aduanero (EU): 85389099, Peso bruto: 33.20 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

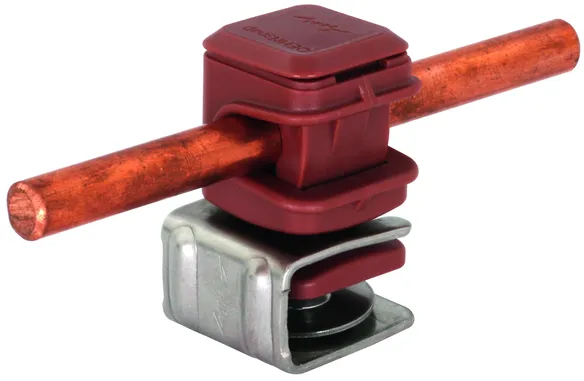

PLATTENsnap roof conductor holder for gable roofs, height 16 mm, StSt, brown
Roof conductor holder with clamping device for roof surfaces, for fixing air-termination and down conductors
Fixed on overlapping constructions
Material of roof conductor holder: StSt
Clamping range: 4-6 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH PS 8 H16 KB4.6 BR V2A
Part No.: 204079
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 4-6 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204079 a favoritos.

Ir a favoritos

El artículo 204079 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

ZIEGELsnap

Fixed between flat tiles (plain tiles) and slabs, with conductor holder DEHNsnap, loose conductor routing.

2 Productos

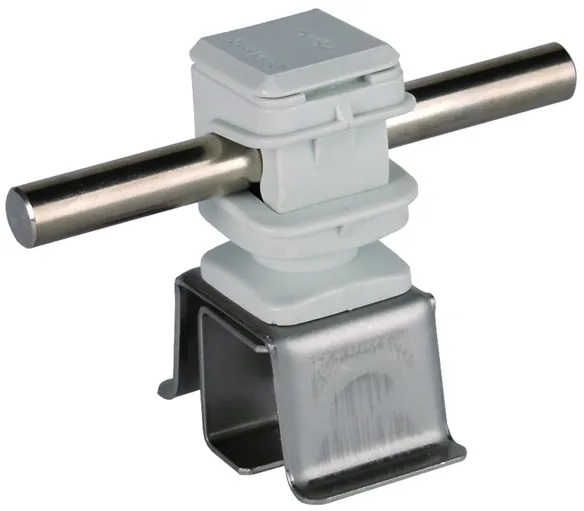

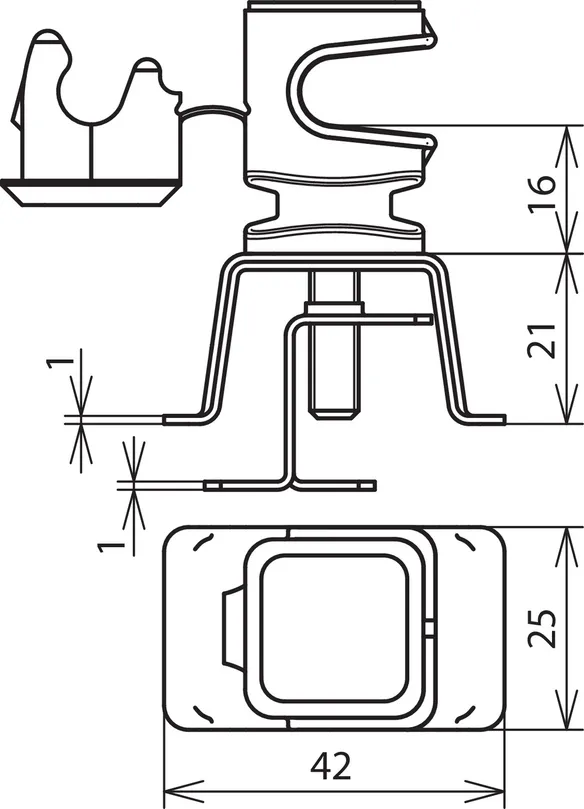

N.º art. 204049 LH ZS 8 H16 KB4.16 GR V2A

GTIN 4013364032309, N.º de arancel aduanero (EU): 85389099, Peso bruto: 42.70 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

ZIEGELsnap roof conductor holder for gable roofs, height 16 mm, StSt, grey
Roof conductor holder with clamping device for roof surfaces, for fixing air-termination and down conductors
Fixed between flat tiles (plain tiles) and slabs
Material of roof conductor holder: StSt
Clamping range: 4-16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH ZS 8 H16 KB4.16 GR V2A
Part No.: 204049
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 4-16 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204049 a favoritos.

Ir a favoritos

El artículo 204049 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 204059 LH ZS 8 H16 KB4.16 BR V2A

GTIN 4013364032316, N.º de arancel aduanero (EU): 85389099, Peso bruto: 43.20 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

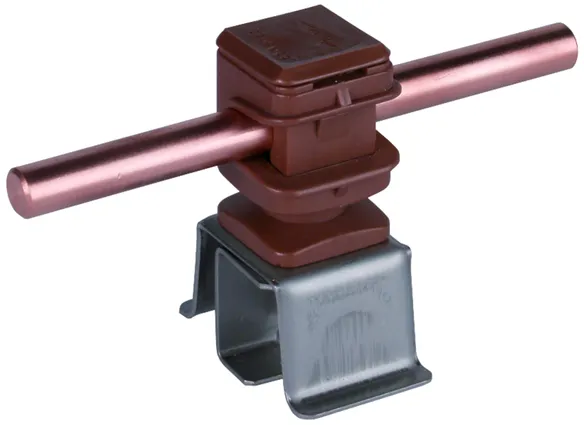

ZIEGELsnap roof conductor holder for gable roofs, height 16 mm, StSt, brown
Roof conductor holder with clamping device for roof surfaces, for fixing air-termination and down conductors
Fixed between flat tiles (plain tiles) and slabs
Material of roof conductor holder: StSt
Clamping range: 4-16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH ZS 8 H16 KB4.16 BR V2A
Part No.: 204059
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 4-16 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204059 a favoritos.

Ir a favoritos

El artículo 204059 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

ZIEGELgrip

Fixed between flat tiles (plain tiles) and slabs, with conductor holder DEHNgrip, loose conductor routing.

1 Producto

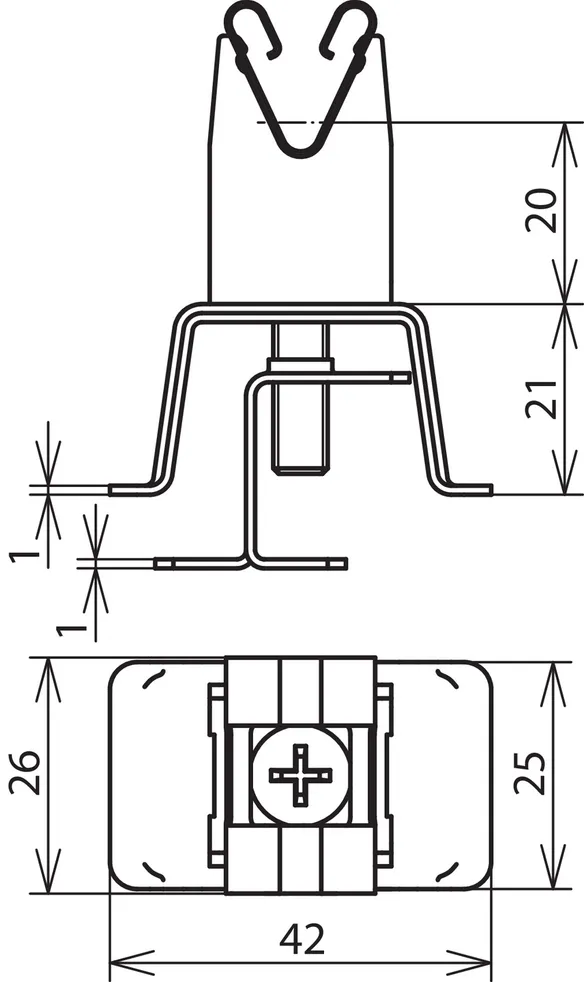

N.º art. 206049 LH ZG 8 H20 KB4.16 V2A

GTIN 4013364242982, N.º de arancel aduanero (EU): 85389099, Peso bruto: 27.20 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

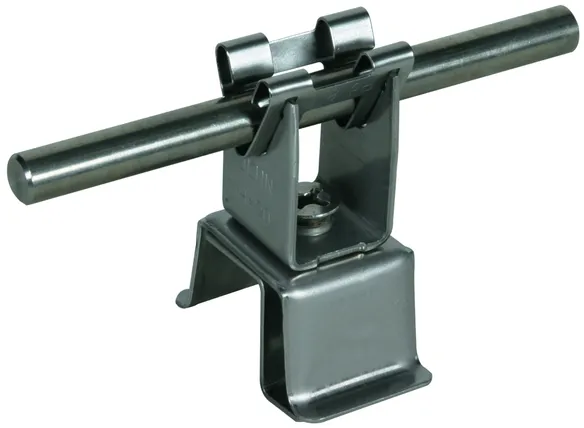

ZIEGELgrip roof conductor holder for gable roofs, height 20 mm, StSt
Roof conductor holder with clamping device for fixing
air-termination and down conductors
Fixed on roof surfaces between flat tiles (plain tiles) and slabs
Material of roof conductor holder: StSt
Clamping range: 4-16 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH ZG 8 H20 KB4.16 V2A
Part No.: 206049
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 4-16 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206049 a favoritos.

Ir a favoritos

El artículo 206049 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

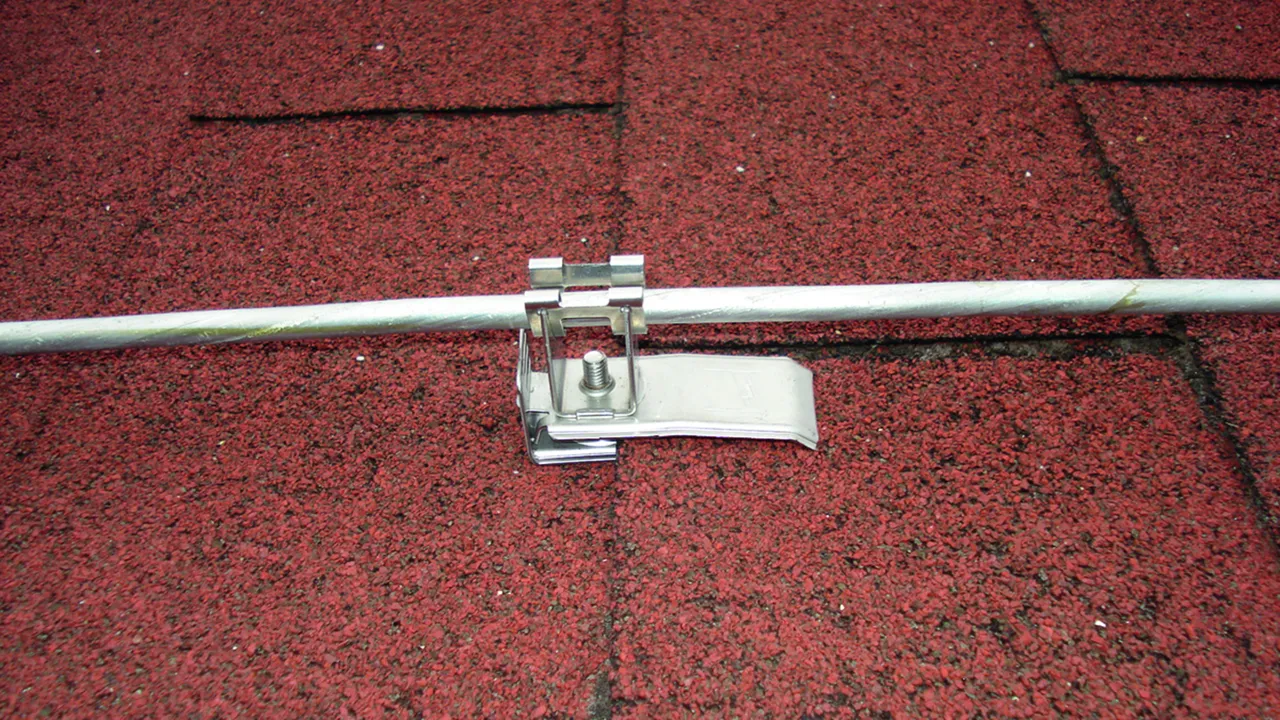

DEHNgrip for bitumen shingles

As well as for roof and wall slabs, loose conductor routing.

2 Productos

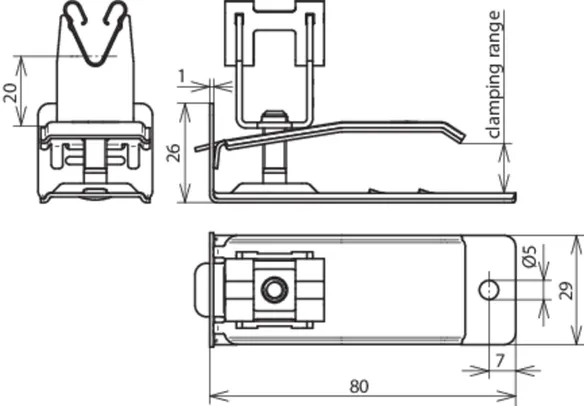

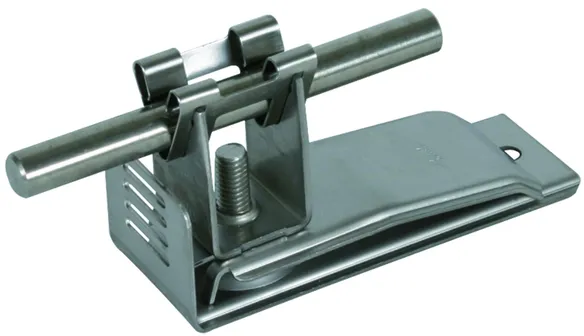

N.º art. 206389 DLH DG H20 UK8 V2A

GTIN 4013364109544, N.º de arancel aduanero (EU): 85389099, Peso bruto: 64.60 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

DEHNgrip roof conductor holder for gable roofs with bitumen shingles
Roof conductor holder StSt, with clamping device for roof surfaces for fixing
air-termination and down conductors
For roof and wall slabs, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Clamping range: 2-8 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG H20 UK8 V2A
Part No.: 206389
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 2-8 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206389 a favoritos.

Ir a favoritos

El artículo 206389 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

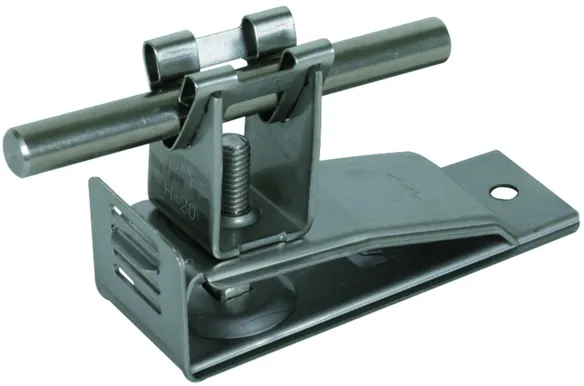

N.º art. 206399 DLH DG 8 H20 KB8.18 V2A

GTIN 4013364109551, N.º de arancel aduanero (EU): 85389099, Peso bruto: 65.60 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

DEHNgrip roof conductor holder for gable roofs with bitumen shingles
Roof conductor holder StSt, with clamping device for roof surfaces for fixing
air-termination and down conductors
For roof and wall slabs, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Clamping range: 8-18 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 KB8.18 V2A
Part No.: 206399
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 8-18 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206399 a favoritos.

Ir a favoritos

El artículo 206399 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNgrip for metal roof shingles

For fixing air-termination and down conductors on e.g. PREFA roof systems (PREFA small format) as well as bitumen shingles and shingles made of natural materials

1 Producto

N.º art. 206379 DLH DG 8 H20 KB2.8 KU V2A

GTIN 4013364430983, N.º de arancel aduanero (EU): 85389099, Peso bruto: 60.01 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

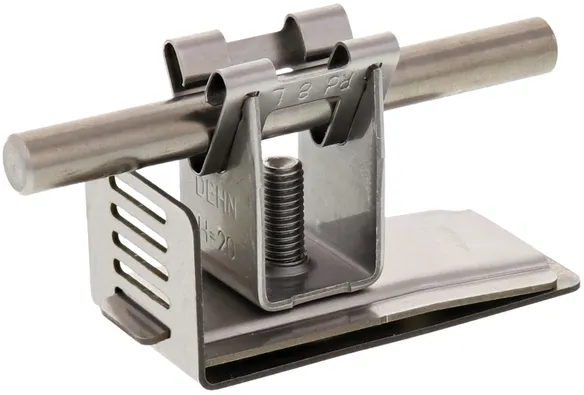

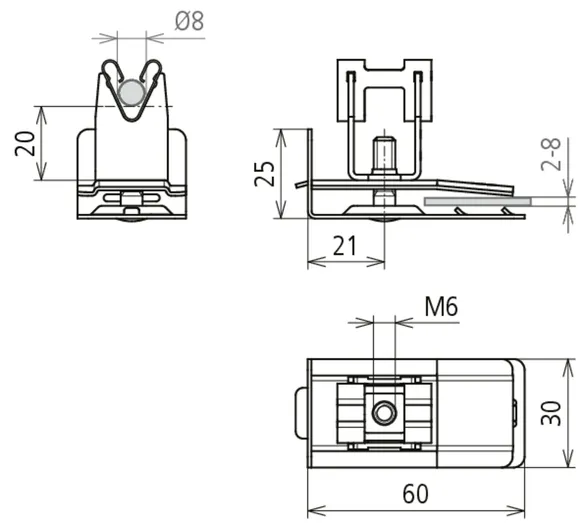

DEHNgrip roof conductor holder, StSt
for metal roof shingles
Roof conductor holder with clamping device for
roof surfaces for fixing air-termination and down
conductors on metal roof shingles, bitumen shingles
as well as roof and wall slabs, with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Clamping range: 2-8 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 KB2.8 KU V2A
Part No.: 206379
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 2-8 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206379 a favoritos.

Ir a favoritos

El artículo 206379 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
