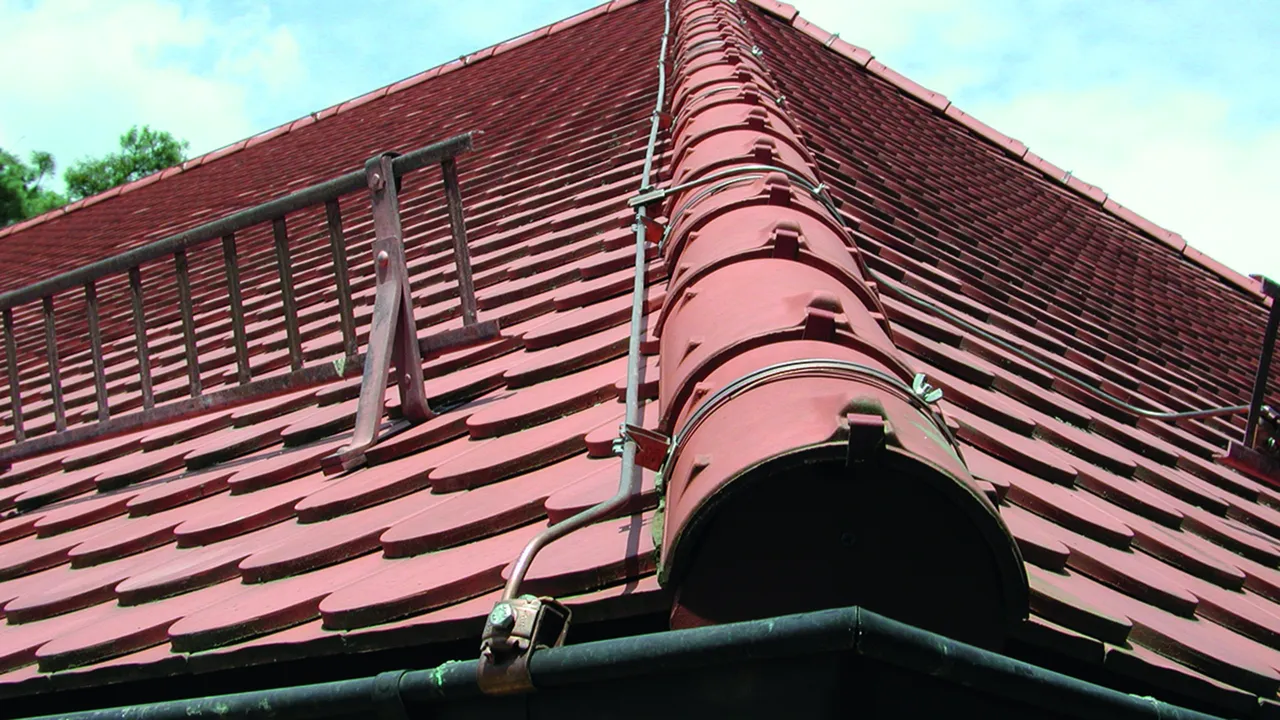

Roof Conductor Holders Adjustable to Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

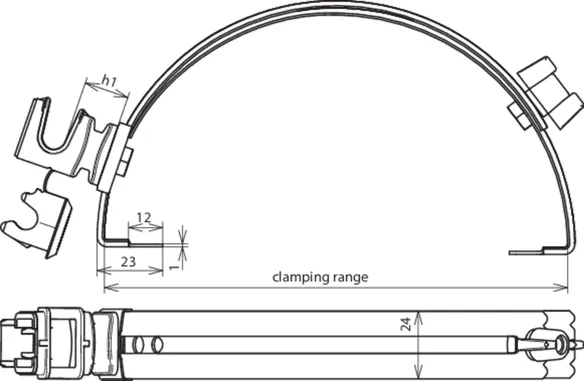

Steplessly adjustable with conductor holder DEHNsnap

Loose conductor leading, laterally adjustable (top middle to the bottom).

6 Productos

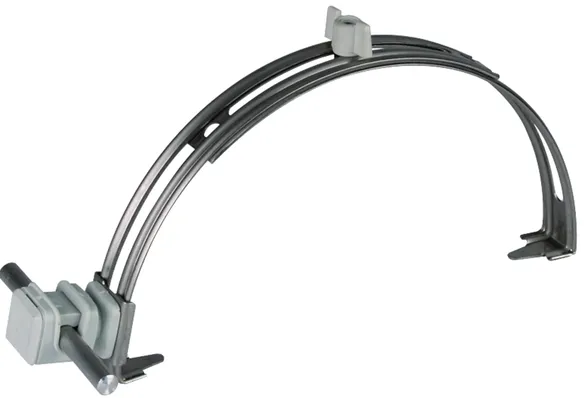

N.º art. 204109 DLH DS 8 H16 FG180.280 GR V2A

GTIN 4013364028098, N.º de arancel aduanero (EU): 85389099, Peso bruto: 103.64 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, adjustable on the side (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 GR V2A
Part No.: 204109
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm

Se ha añadido el artículo 204109 a favoritos.

Ir a favoritos

El artículo 204109 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

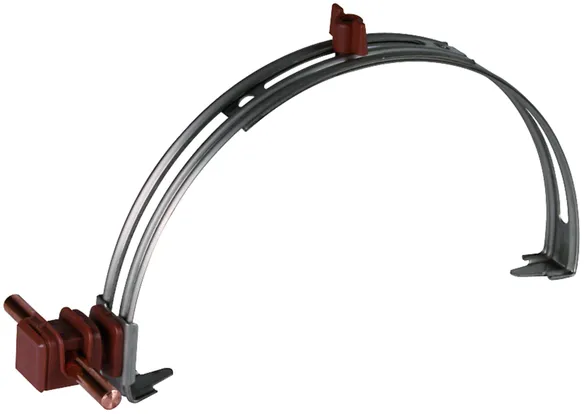

N.º art. 204911 DLH DS 8 H16 FG180.280 BR V2A

GTIN 4013364030640, N.º de arancel aduanero (EU): 85389099, Peso bruto: 104.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 16 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280 BR V2A
Part No.: 204911
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm

Se ha añadido el artículo 204911 a favoritos.

Ir a favoritos

El artículo 204911 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

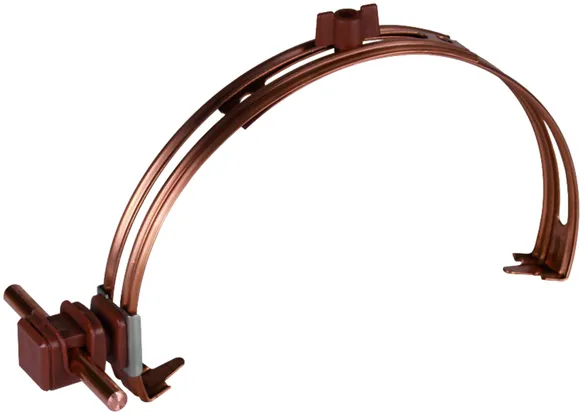

N.º art. 204107 DLH DS 8 H16 FG180.280BR GALCU

GTIN 4013364028104, N.º de arancel aduanero (EU): 85389099, Peso bruto: 111.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNsnap conductor holder, brown, Cu, height of conductor holder: 16 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H16 FG180.280BR GALCU
Part No.: 204107
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm

Se ha añadido el artículo 204107 a favoritos.

Ir a favoritos

El artículo 204107 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

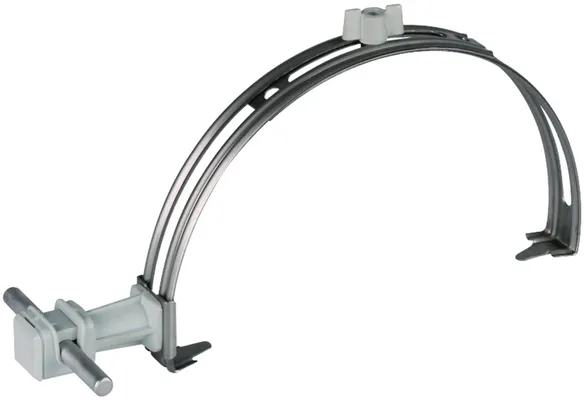

N.º art. 204129 DLH DS 8 H36 FG180.280 GR V2A

GTIN 4013364021433, N.º de arancel aduanero (EU): 85389099, Peso bruto: 108.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNsnap conductor holder, grey, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 GR V2A
Part No.: 204129
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm

Se ha añadido el artículo 204129 a favoritos.

Ir a favoritos

El artículo 204129 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

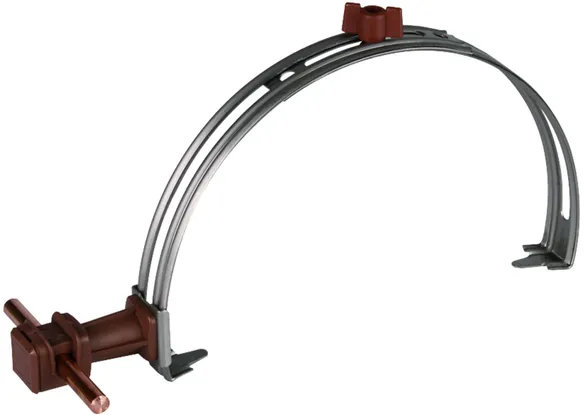

N.º art. 204913 DLH DS 8 H36 FG180.280 BR V2A

GTIN 4013364030664, N.º de arancel aduanero (EU): 85389099, Peso bruto: 114.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNsnap conductor holder, brown, StSt, height of conductor holder: 36 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280 BR V2A
Part No.: 204913
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm

Se ha añadido el artículo 204913 a favoritos.

Ir a favoritos

El artículo 204913 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

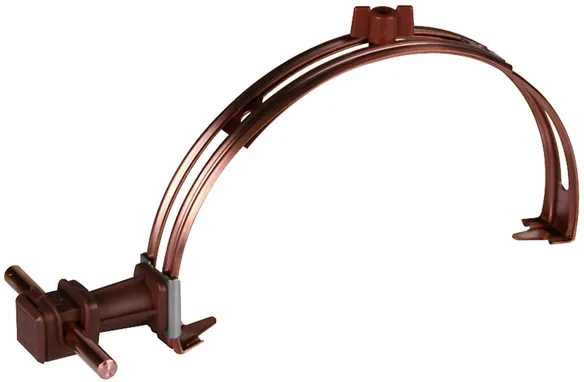

N.º art. 204127 DLH DS 8 H36 FG180.280BR GALCU

GTIN 4013364028142, N.º de arancel aduanero (EU): 85389099, Peso bruto: 116.24 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNsnap conductor holder, Cu, height of conductor holder: 36 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH DS 8 H36 FG180.280BR GALCU
Part No.: 204127
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm

Se ha añadido el artículo 204127 a favoritos.

Ir a favoritos

El artículo 204127 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

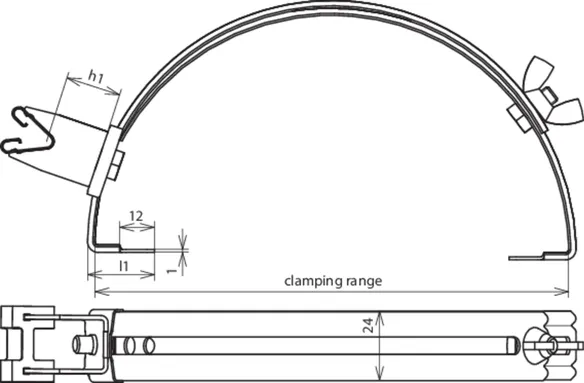

Steplessly adjustable with conductor holder DEHNgrip

Loose conductor leading, laterally adjustable (top middle to the bottom).

5 Productos

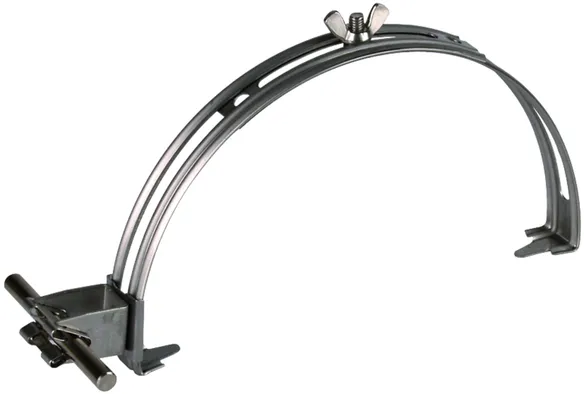

N.º art. 206109 DLH DG 8 H20 FG180.280 V2A

GTIN 4013364042810, N.º de arancel aduanero (EU): 85389099, Peso bruto: 116.00 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 V2A
Part No.: 206109
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Length of supporting claw 23 mm
Standard EN 62561-4

Se ha añadido el artículo 206109 a favoritos.

Ir a favoritos

El artículo 206109 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

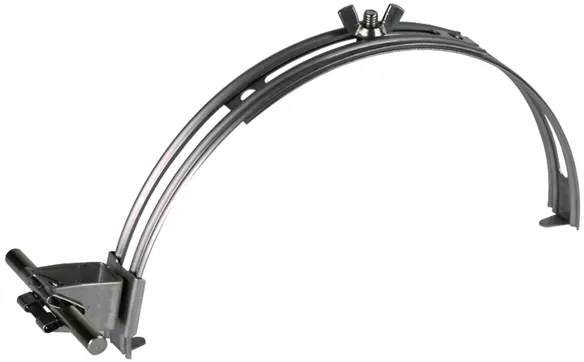

N.º art. 206809 DLH DG 8 H20 FG180.280 KK V2A

GTIN 4013364077485, N.º de arancel aduanero (EU): 85389099, Peso bruto: 120.34 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNgrip conductor holder, StSt, height of conductor holder: 20 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK V2A
Part No.: 206809
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Length of supporting claw 15 mm
Standard EN 62561-4

Se ha añadido el artículo 206809 a favoritos.

Ir a favoritos

El artículo 206809 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

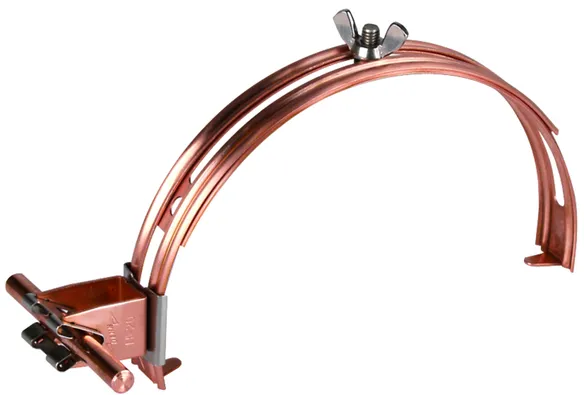

N.º art. 206807 DLH DG 8 H20 FG180.280 KK GALCU

GTIN 4013364046306, N.º de arancel aduanero (EU): 85389099, Peso bruto: 113.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNgrip conductor holder, Cu, height of conductor holder: 20 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H20 FG180.280 KK GALCU
Part No.: 206807
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Length of supporting claw 15 mm
Standard EN 62561-4

Se ha añadido el artículo 206807 a favoritos.

Ir a favoritos

El artículo 206807 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

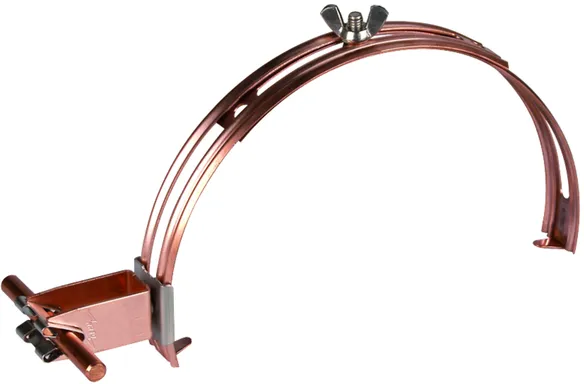

N.º art. 206817 DLH DG 8 H32 FG180.280 KK GALCU

GTIN 4013364078581, N.º de arancel aduanero (EU): 85389099, Peso bruto: 128.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNgrip conductor holder, Cu, height of conductor holder: 32 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally on the side (top centre to the bottom)
Material of roof conductor holder: Cu
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK GALCU
Part No.: 206817
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Length of supporting claw 15 mm
Standard EN 62561-4

Se ha añadido el artículo 206817 a favoritos.

Ir a favoritos

El artículo 206817 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

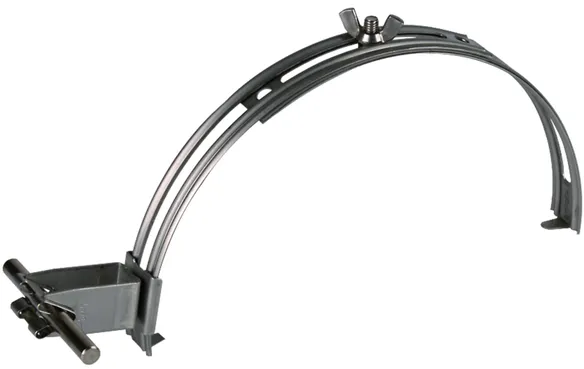

N.º art. 206819 DLH DG 8 H32 FG180.280 KK V2A

GTIN 4013364077362, N.º de arancel aduanero (EU): 85389099, Peso bruto: 121.04 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNgrip conductor holder, StSt, height of conductor holder: 32 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Steplessly adjustable with DEHNsnap conductor holder, loose conductor leading, laterally adjustable (top centre to the bottom)
Material of roof conductor holder: StSt
Clamping range: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DG 8 H32 FG180.280 KK V2A
Part No.: 206819
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Length of supporting claw 15 mm
Standard EN 62561-4

Se ha añadido el artículo 206819 a favoritos.

Ir a favoritos

El artículo 206819 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

Stepwise adjustable with conductor holder DEHNquick

Fixed conductor leading.

5 Productos

N.º art. 202020 DLH DQ 6.10 FG120.240 STTZN

GTIN 4013364020764, N.º de arancel aduanero (EU): 85389099, Peso bruto: 259.92 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

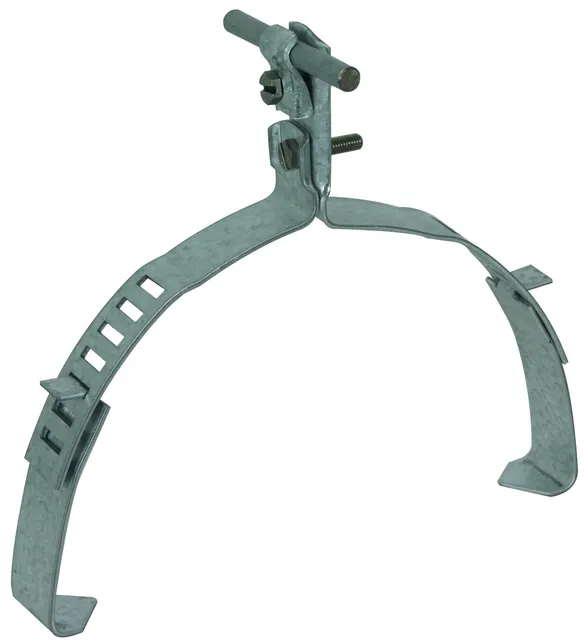

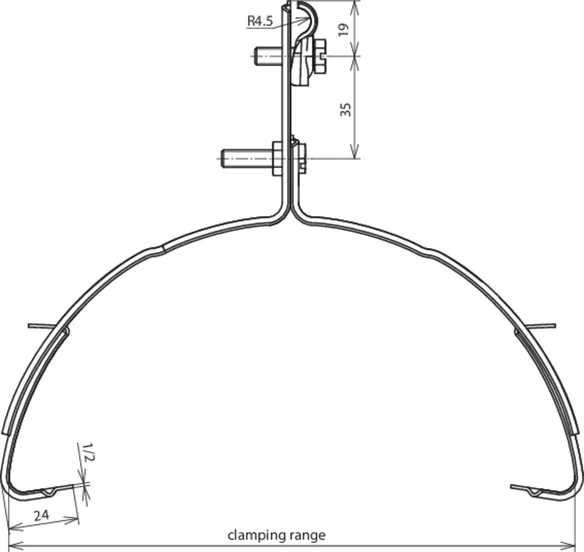

DEHNQUICK conductor holder, St/tZn, clamping range: 120-240 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Continuously adjustable with DEHNQUICK conductor holder, fixed conductor leading
Material of roof conductor holder: St/tZn
Clamping range: 120-240 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 STTZN
Part No.: 202020
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder St/tZn
Clamping range 120-240 mm
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm
Length of supporting claw 24 mm

Se ha añadido el artículo 202020 a favoritos.

Ir a favoritos

El artículo 202020 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 202021 DLH DQ 6.10 FG200.280 STTZN

GTIN 4013364020788, N.º de arancel aduanero (EU): 85389099, Peso bruto: 273.92 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNQUICK conductor holder, St/tZn, clamping range: 200-280 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Continuously adjustable with DEHNQUICK conductor holder, fixed conductor leading
Material of roof conductor holder: St/tZn
Clamping range: 200-280 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 STTZN
Part No.: 202021
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder St/tZn
Clamping range 200-280 mm
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm
Length of supporting claw 24 mm

Se ha añadido el artículo 202021 a favoritos.

Ir a favoritos

El artículo 202021 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 202900 DLH DQ 6.10 FG120.240 V2A

GTIN 4013364020801, N.º de arancel aduanero (EU): 85389099, Peso bruto: 133.24 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

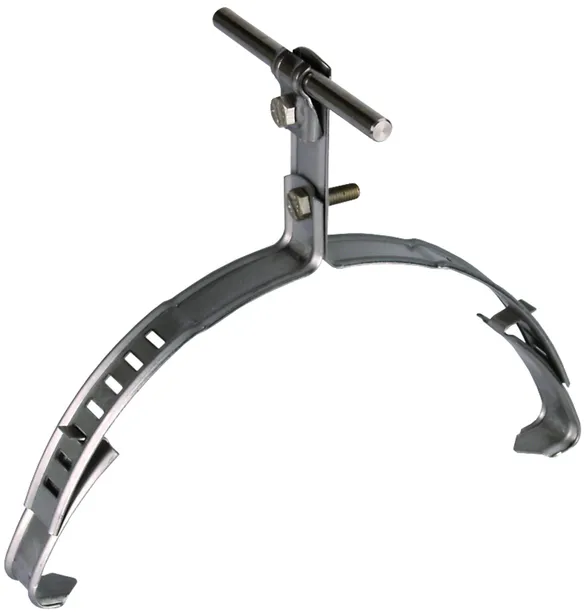

DEHNQUICK conductor holder, StSt, clamping range: 120-240 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Continuously adjustable with DEHNQUICK conductor holder, fixed conductor leading
Material of roof conductor holder: StSt
Clamping range: 120-240 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 V2A
Part No.: 202900
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range 120-240 mm
Material of conductor holder StSt
Conductor holder support Rd 6-10 mm
Length of supporting claw 24 mm

Se ha añadido el artículo 202900 a favoritos.

Ir a favoritos

El artículo 202900 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 202027 DLH DQ 6.10 FG120.240 CU

GTIN 4013364020771, N.º de arancel aduanero (EU): 85389099, Peso bruto: 299.92 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

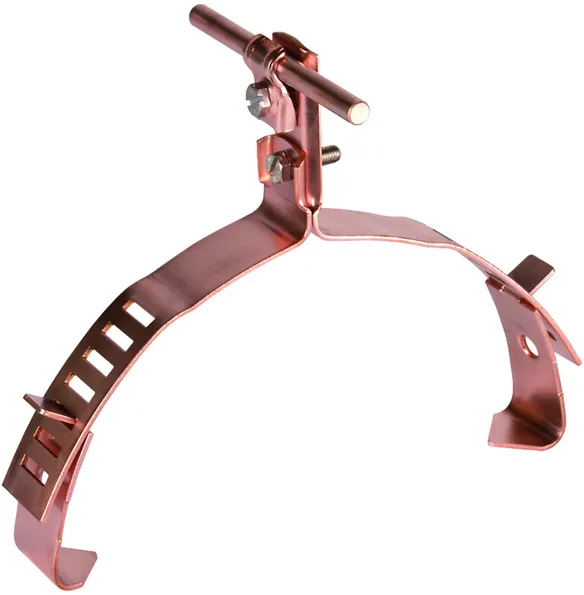

DEHNQUICK conductor holder, Cu, clamping range: 120-240 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Continuously adjustable with DEHNQUICK conductor holder, fixed conductor leading
Material of roof conductor holder: Cu
Clamping range: 120-240 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG120.240 CU
Part No.: 202027
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range 120-240 mm
Material of conductor holder Cu
Conductor holder support Rd 6-10 mm
Length of supporting claw 24 mm

Se ha añadido el artículo 202027 a favoritos.

Ir a favoritos

El artículo 202027 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 202227 DLH DQ 6.10 FG200.280 CU

GTIN 4013364020795, N.º de arancel aduanero (EU): 85389099, Peso bruto: 299.92 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

DEHNQUICK conductor holder, Cu, clamping range: 200-280 mm
Roof conductor holder adjustable to ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
Continuously adjustable with DEHNQUICK conductor holder, fixed conductor leading
Material of roof conductor holder: Cu
Clamping range: 200-280 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH DQ 6.10 FG200.280 CU
Part No.: 202227
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range 200-280 mm
Material of conductor holder Cu
Conductor holder support Rd 6-10 mm
Length of supporting claw 24 mm

Se ha añadido el artículo 202227 a favoritos.

Ir a favoritos

El artículo 202227 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
back to top
