Roof Conductor Holders with Tension Spring for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge e.g. of tiled roofs.

SPANNsnap light

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

2 Productos

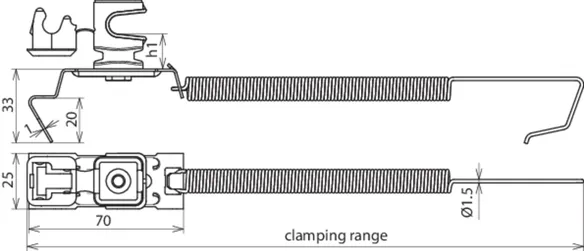

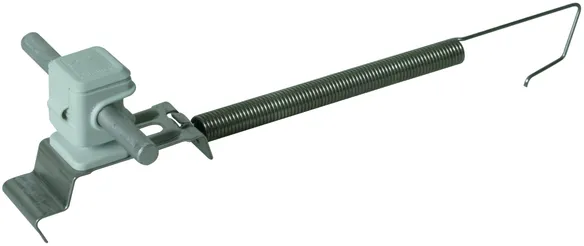

N.º art. 204469 DLH SSL 8 H16 FG180.280 GR V2A

GTIN 4013364124851, N.º de arancel aduanero (EU): 85389099, Peso bruto: 67.20 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 16 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H16 FG180.280 GR V2A
Part No.: 204469
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204469 a favoritos.

Ir a favoritos

El artículo 204469 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

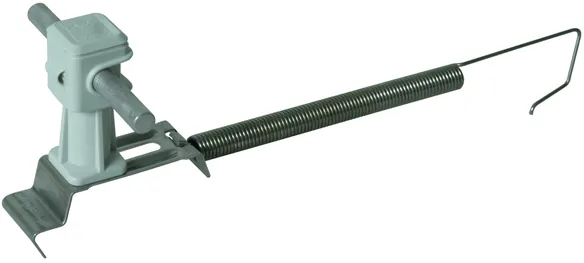

N.º art. 204449 DLH SSL 8 H36 FG180.280 GR V2A

GTIN 4013364124837, N.º de arancel aduanero (EU): 85389099, Peso bruto: 70.30 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNsnap light, StSt, height of conductor holder: 36 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SSL 8 H36 FG180.280 GR V2A
Part No.: 204449
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204449 a favoritos.

Ir a favoritos

El artículo 204449 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

SPANNsnap

For fixing by StSt tension spring, with DEHNsnap conductor holder, loose conductor leading, laterally adjustable.

4 Productos

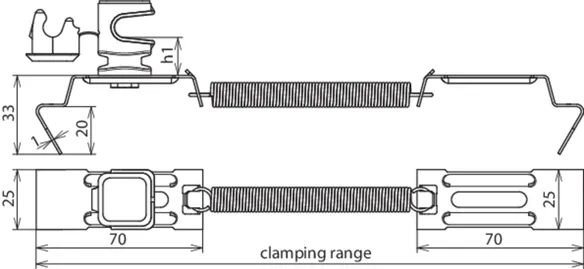

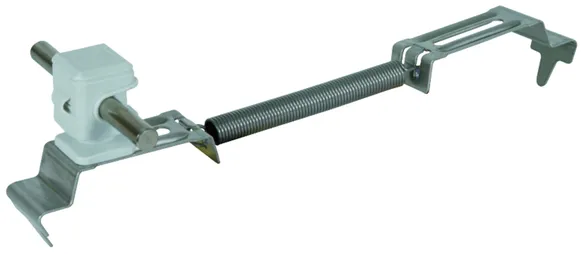

N.º art. 204269 DLH SS 8 H16 FG180.280 GR V2A

GTIN 4013364035812, N.º de arancel aduanero (EU): 85389099, Peso bruto: 68.60 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 16 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 GR V2A
Part No.: 204269
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204269 a favoritos.

Ir a favoritos

El artículo 204269 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

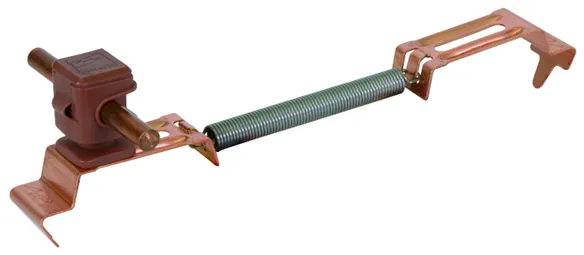

N.º art. 204267 DLH SS 8 H16 FG180.280 BR CU

GTIN 4013364035805, N.º de arancel aduanero (EU): 85389099, Peso bruto: 74.60 g, Empaquetado: 25.00 pc(s)

Predecesor

Figuras

Más información

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 16 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap light with fixing by stainless steel tension spring with DEHNsnap conductor holder,
loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H16 FG180.280 BR CU
Part No.: 204267
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204267 a favoritos.

Ir a favoritos

El artículo 204267 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

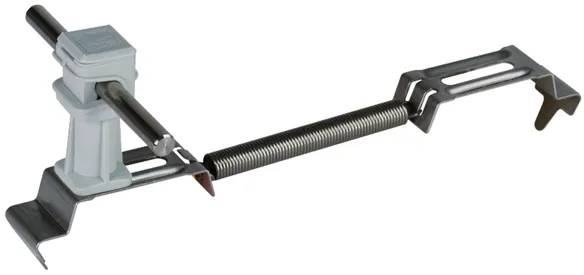

N.º art. 204249 DLH SS 8 H36 FG180.280 GR V2A

GTIN 4013364041790, N.º de arancel aduanero (EU): 85389099, Peso bruto: 72.60 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNsnap, StSt, height of conductor holder: 36 mm, grey
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 GR V2A
Part No.: 204249
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204249 a favoritos.

Ir a favoritos

El artículo 204249 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

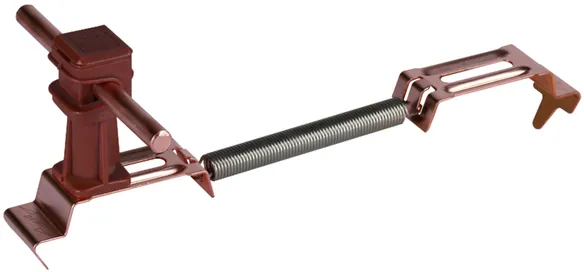

N.º art. 204247 DLH SS 8 H36 FG180.280 BR CU

GTIN 4013364041806, N.º de arancel aduanero (EU): 85389099, Peso bruto: 76.60 g, Empaquetado: 25.00 pc(s)

Predecesor

Figuras

Más información

Pitched roofs - SPANNsnap, Cu, height of conductor holder: 36 mm, brown
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNsnap with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: DLH SS 8 H36 FG180.280 BR CU
Part No.: 204247
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Se ha añadido el artículo 204247 a favoritos.

Ir a favoritos

El artículo 204247 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

SPANNgrip light

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

2 Productos

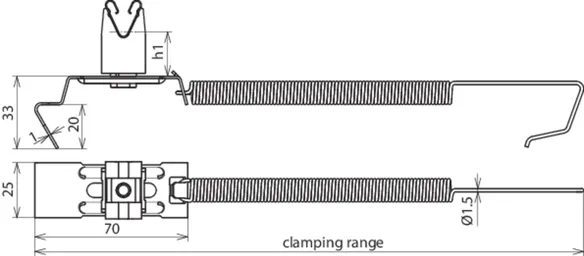

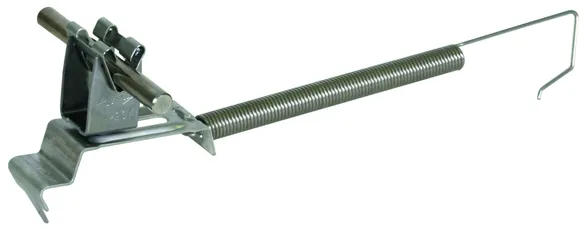

N.º art. 206439 DLH SGL 8 H20 FG180.280 V2A

GTIN 4013364124875, N.º de arancel aduanero (EU): 85389099, Peso bruto: 76.40 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side

Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H20 FG180.280 V2A
Part No.: 206439
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206439 a favoritos.

Ir a favoritos

El artículo 206439 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

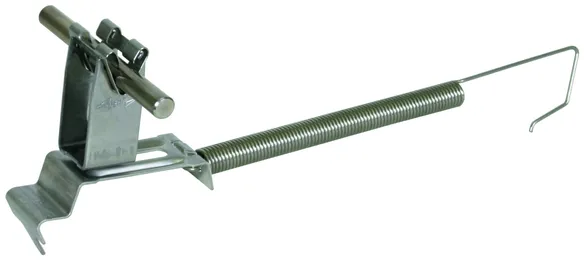

N.º art. 206449 DLH SGL 8 H32 FG180.280 V2A

GTIN 4013364124899, N.º de arancel aduanero (EU): 85389099, Peso bruto: 82.10 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNgrip light, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip light with fixing by stainless steel tension spring with DEHNsnap conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SGL 8 H32 FG180.280 V2A
Part No.: 206449
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206449 a favoritos.

Ir a favoritos

El artículo 206449 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

SPANNgrip

For fixing by StSt tension spring, with DEHNgrip conductor holder, loose conductor leading, laterally adjustable.

4 Productos

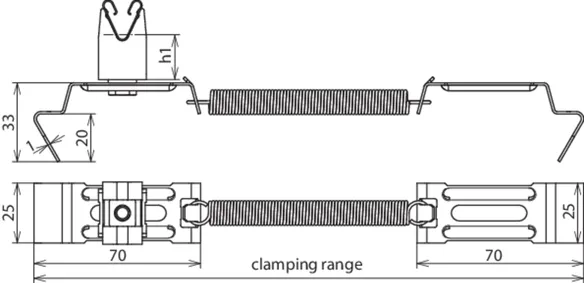

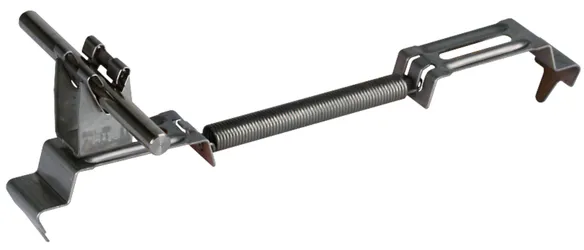

N.º art. 206239 DLH SG 8 H20 FG180.280 V2A

GTIN 4013364042650, N.º de arancel aduanero (EU): 85389099, Peso bruto: 78.60 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

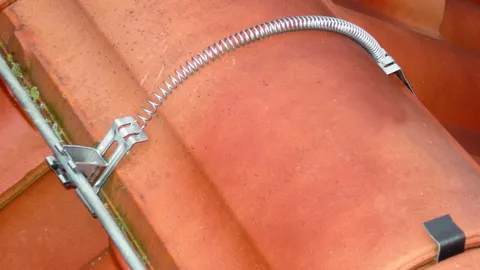

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 V2A
Part No.: 206239
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206239 a favoritos.

Ir a favoritos

El artículo 206239 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

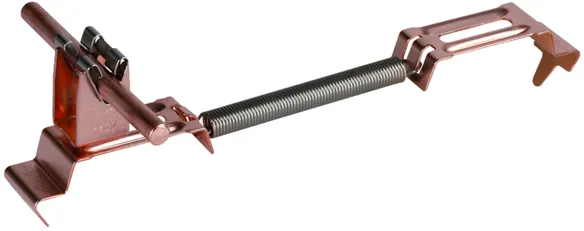

N.º art. 206237 DLH SG 8 H20 FG180.280 CU

GTIN 4013364077300, N.º de arancel aduanero (EU): 85389099, Peso bruto: 85.60 g, Empaquetado: 25.00 pc(s)

Predecesor

Figuras

Más información

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 20 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 20 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H20 FG180.280 CU
Part No.: 206237
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 20 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206237 a favoritos.

Ir a favoritos

El artículo 206237 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

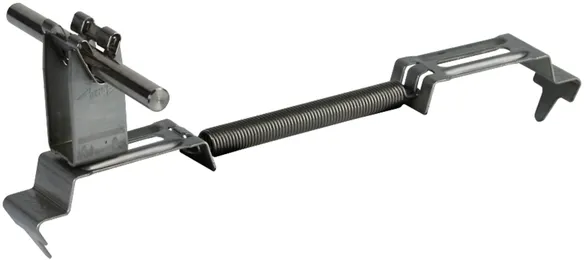

N.º art. 206249 DLH SG 8 H32 FG180.280 V2A

GTIN 4013364042803, N.º de arancel aduanero (EU): 85389099, Peso bruto: 84.60 g, Empaquetado: 25.00 pc(s)

Figuras

Más información

Pitched roofs - SPANNgrip, StSt, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: StSt
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: StSt

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 V2A
Part No.: 206249
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206249 a favoritos.

Ir a favoritos

El artículo 206249 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206247 DLH SG 8 H32 FG180.280 CU

GTIN 4013364078574, N.º de arancel aduanero (EU): 85389099, Peso bruto: 96.60 g, Empaquetado: 25.00 pc(s)

Predecesor

Figuras

Más información

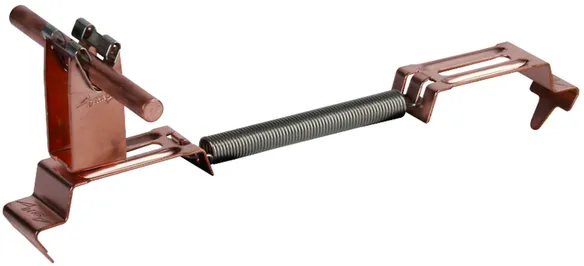

Pitched roofs - SPANNgrip, Cu, height of conductor holder: 32 mm
Roof conductor holder with tension spring for ridge and hip tiles for fixing of air-termination conductors on the ridge e.g. for tiled roofs
SPANNgrip with fixing by stainless steel tension spring with DEHNgrip conductor holder, loose conductor leading, adjustable on the side
Material of roof conductor holder: Cu
Clamping range of ridge tile width: 180-280 mm
Height of conductor holder: 32 mm
Material of conductor holder: Cu

Brand: DEHN
Type: DLH SG 8 H32 FG180.280 CU
Part No.: 206247
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Clamping range of ridge tile width 180-280 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor holder support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206247 a favoritos.

Ir a favoritos

El artículo 206247 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
back to top
