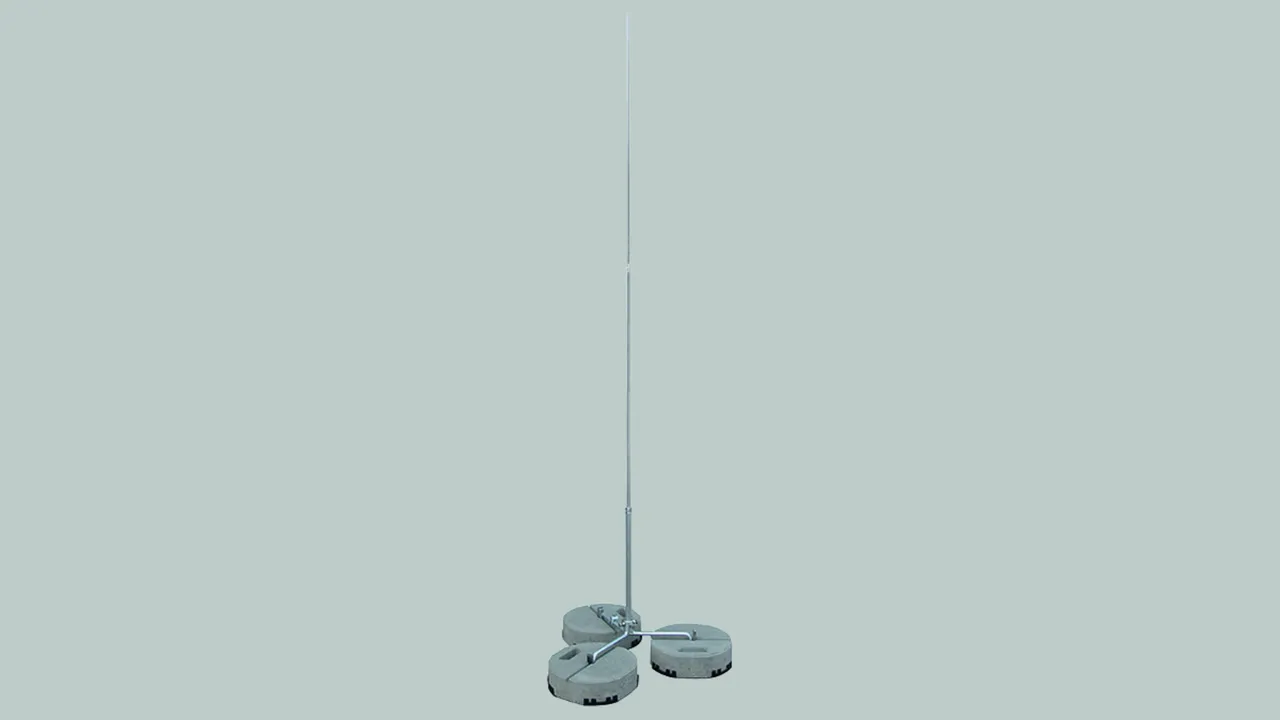

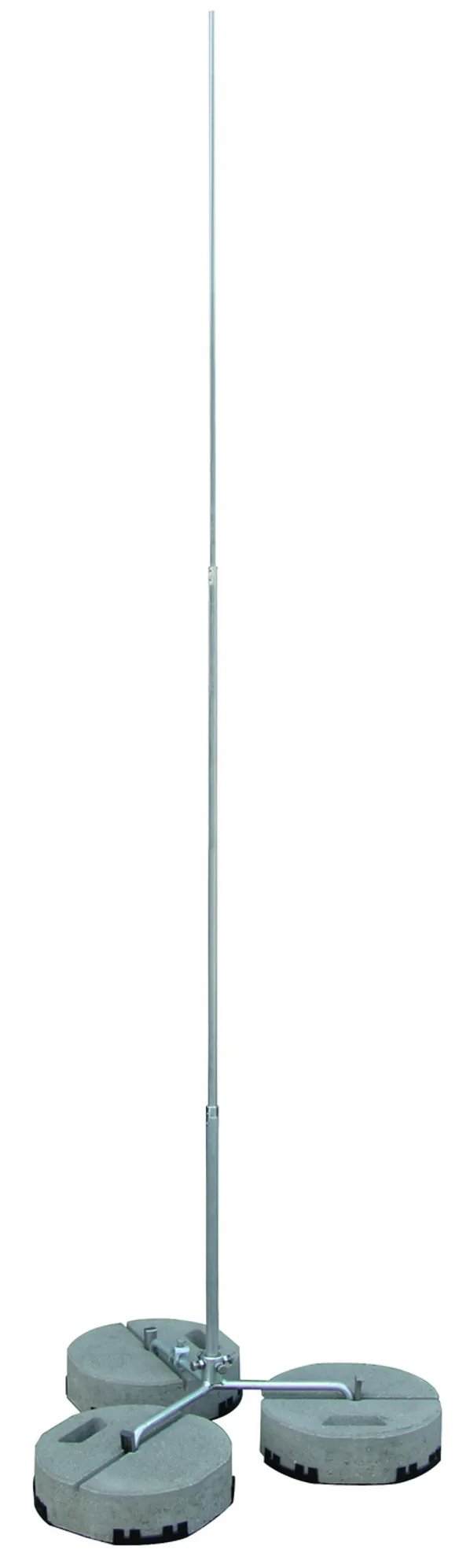

Self-supporting Air-Termination Rods 2.5 to 3.5 m

Self-supporting air-termination rods with tripod for protecting roof-mounted structures, adjustable to a roof pitch up to max. 10°.

The concrete base (Part No. 102 075 or 102 010) and the plastic base plate (Part No. 102 060 or 102 050) have to be ordered separately.

Components:
– Tapered tubular air-termination rod Ø40 / 16 / 10 mm and Ø22 / 16 / 10 mm
– Connection clamp (rod clamp) for 8–10‑mm round steel
– Tripod for concrete base with fixing wedge

Note: Permissible roof loads have to be considered and checked with the constructor where required.

For air-termination rods Ø22 mm

3 Productos

N.º art. 105525 FS 22 16 10 2500 AL DBS R320 STTZN

GTIN 4013364241985, N.º de arancel aduanero (EU): 85389099, Peso bruto: 3.40 kg, Empaquetado: 1.00 pc(s)

Predecesor

Figuras

Más información

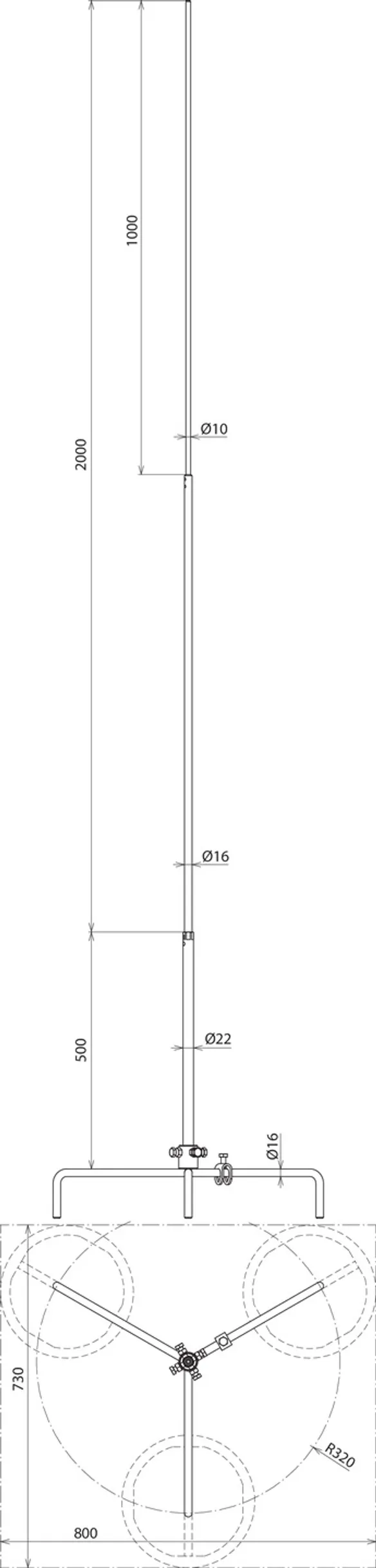

Self-supporting air-termination rod, 2500 mm high
Self-supporting air-termination rod with tripod
for protecting roof-mounted structures,
adjustable to a roof inclination up to max. 10 degrees.
The air-termination rods are dimensioned according to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 185 km/h.
The stackable concrete base (Part No. 102 075 or 102 010) and
the base plate (Part No. 102 060 or 102 050) have to be ordered separately.
Height: 2500 mm
Radius: 320 mm
Space required for tripod with 3 bases, 8.5 kg each : 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each: 850 x 930 mm
Max. gust wind speed for 3 bases, 8.5 kg each : 137 km/h
Max. gust wind speed for 3 bases, 17 kg each: 185 km/h
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 2500 AL DBS R320 STTZN
Part No.: 105525
or equivalent.

Certificados



Datos técnicos

Height 2500 mm
Radius 320 mm
Space required for tripod with 3 bases, 8.5 kg each (l x w) 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each (l x w) 850 x 930 mm
Max. gust wind speed for 3 bases, 8.5 kg each 137 km/h
Max. gust wind speed for 3 bases, 17 kg each 185 km/h
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Se ha añadido el artículo 105525 a favoritos.

Ir a favoritos

El artículo 105525 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105530 FS 22 16 10 3000 AL DBS R320 STTZN

GTIN 4013364242029, N.º de arancel aduanero (EU): 85389099, Peso bruto: 3.80 kg, Empaquetado: 1.00 pc(s)

Predecesor

Figuras

Más información

Self-supporting air-termination rod, 3000 mm high
Self-supporting air-termination rod with tripod
for protecting roof-mounted structures,
adjustable to a roof inclination up to max. 10 degrees.
The air-termination rods are dimensioned according to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 168 km/h.
The stackable concrete base (Part No. 102 075 or 102 010) and
the base plate (Part No. 102 060 or 102 050) have to be ordered separately.
Height: 3000 mm
Radius: 320 mm
Space required for tripod with 3 bases, 8.5 kg each : 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each: 850 x 930 mm
Max. gust wind speed for 3 bases, 8.5 kg each : 112 km/h
Max. gust wind speed for 3 bases, 17 kg each: 168 km/h
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 3000 AL DBS R320 STTZN
Part No.: 105530
or equivalent.

Certificados



Datos técnicos

Height 3000 mm
Radius 320 mm
Space required for tripod with 3 bases, 8.5 kg each (l x w) 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each (l x w) 850 x 930 mm
Max. gust wind speed for 3 bases, 8.5 kg each 112 km/h
Max. gust wind speed for 3 bases, 17 kg each 168 km/h
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Se ha añadido el artículo 105530 a favoritos.

Ir a favoritos

El artículo 105530 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105535 FS 22 16 10 3500 AL DBS R320 STTZN

GTIN 4013364242043, N.º de arancel aduanero (EU): 85389099, Peso bruto: 4.30 kg, Empaquetado: 1.00 pc(s)

Predecesor

Figuras

Más información

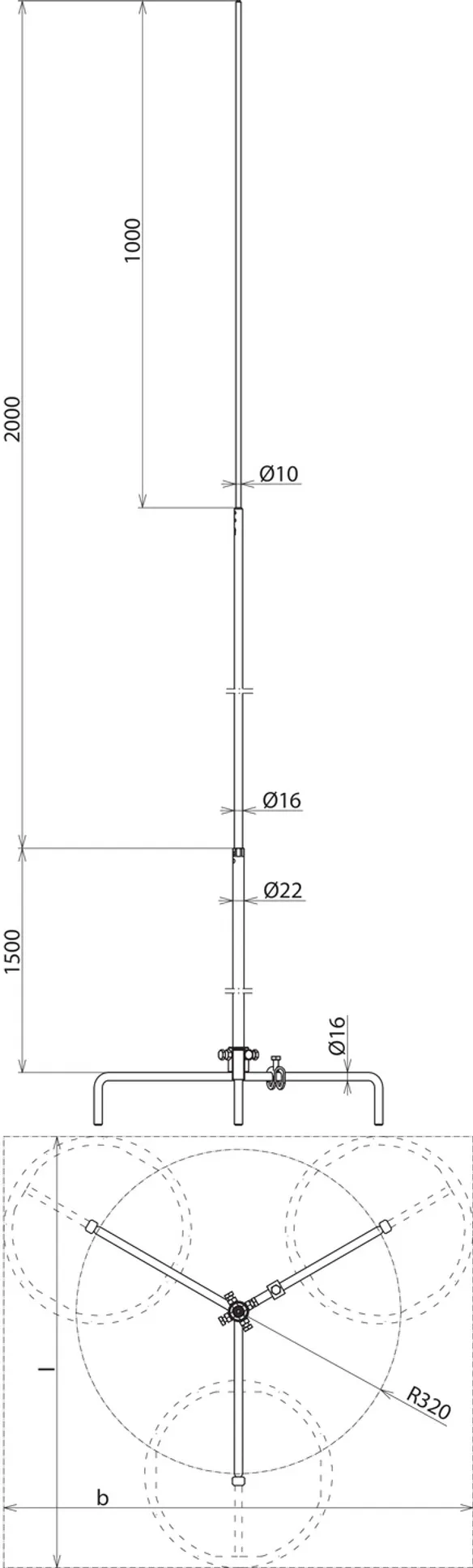

Self-supporting air-termination rod, 3500 mm high
Self-supporting air-termination rod with tripod
for protecting roof-mounted structures,
adjustable to a roof inclination up to max. 10 degrees.
The air-termination rods are dimensioned according to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 135 km/h.
The stackable concrete base (Part No. 102 075 or 102 010) and
the base plate (Part No. 102 060 or 102 050) have to be ordered separately.
Height: 3500 mm
Radius: 320 mm
Space required for tripod with 3 bases, 8.5 kg each : 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each: 850 x 930 mm
Max. gust wind speed for 3 bases, 8.5 kg each : 95 km/h
Max. gust wind speed for 3 bases, 17 kg each: 135 km/h
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS 22 16 10 3500 AL DBS R320 STTZN
Part No.: 105535
or equivalent.

Certificados



Datos técnicos

Height 3500 mm
Radius 320 mm
Space required for tripod with 3 bases, 8.5 kg each (l x w) 730 x 800 mm
Space required for tripod with 3 bases, 17 kg each (l x w) 850 x 930 mm
Max. gust wind speed for 3 bases, 8.5 kg each 95 km/h
Max. gust wind speed for 3 bases, 17 kg each 135 km/h
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Se ha añadido el artículo 105535 a favoritos.

Ir a favoritos

El artículo 105535 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

For air-termination rods Ø40 mm

2 Productos

N.º art. 105531 FS D40 16 10 3000 AL DBS KB STTZN

GTIN 4013364535893, N.º de arancel aduanero (EU): 85389099, Peso bruto: 11.00 kg, Empaquetado: 1.00 pc(s)

Figuras

Más información

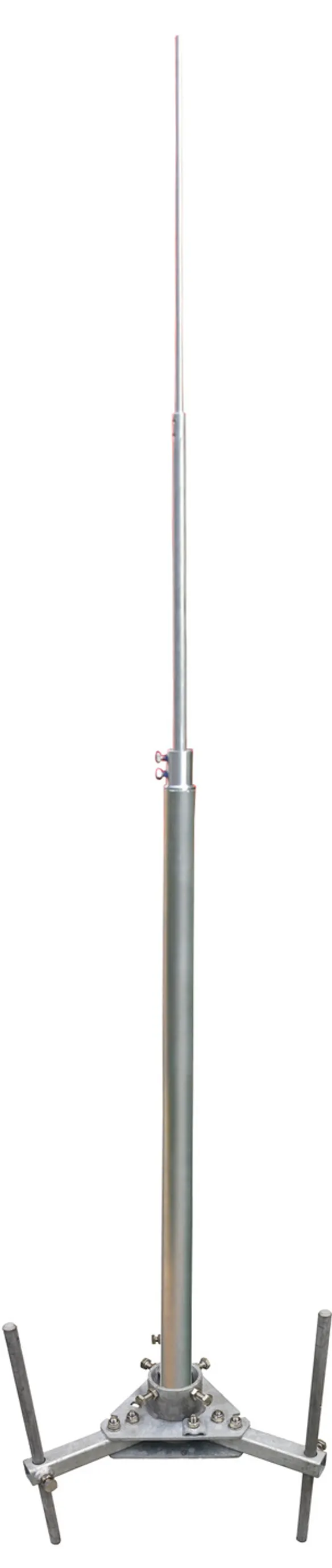

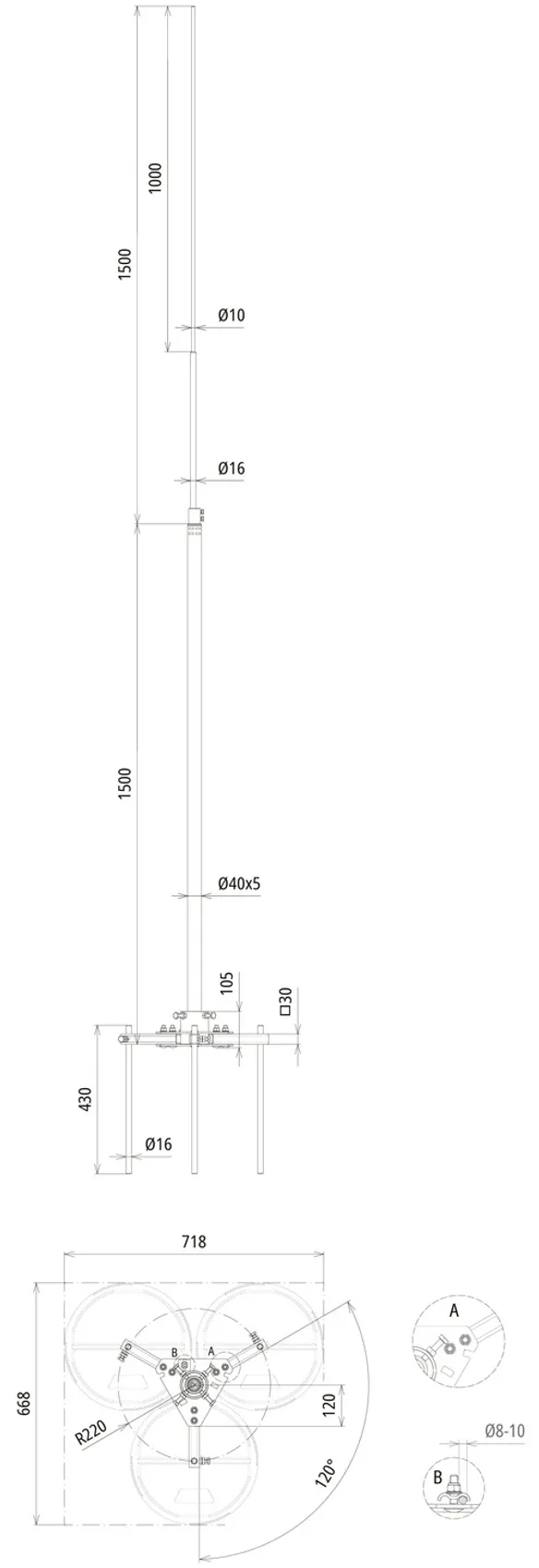

Self-supporting air-termination rod; height: 3,000 mm
Self-supporting air-termination rods with tripod
for protecting roof-mounted structures,
Adjustable to the roof slope up to max. 10 degrees.
The air-termination rods are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
The stackable concrete base (Part No. 102 010) and
the plastic base plate (Part No. 102 050) must be ordered
separately.
Height: 3,000 mm
Radius: 220 mm
Space requirements for stand with concrete base of 17 kg: 668 x 718 mm
Material of air-termination rod: Al
Stand material: HDG steel
Standard: DIN EN 62561-(1+2)
Height: 3000 mm
Radius: 220 mm
Space required for tripod: 668 x 718 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS D40 16 10 3000 AL DBS KB STTZN
Part No.: 105531
or equivalent.



Datos técnicos

Height 3000 mm
Radius 220 mm
Space required for tripod (l x w) 668 x 718 mm
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Se ha añadido el artículo 105531 a favoritos.

Ir a favoritos

El artículo 105531 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 105536 FS D40 16 10 3500 AL DBS KB STTZN

GTIN 4013364535909, N.º de arancel aduanero (EU): 85389099, Peso bruto: 11.80 kg, Empaquetado: 1.00 pc(s)

Figuras

Más información

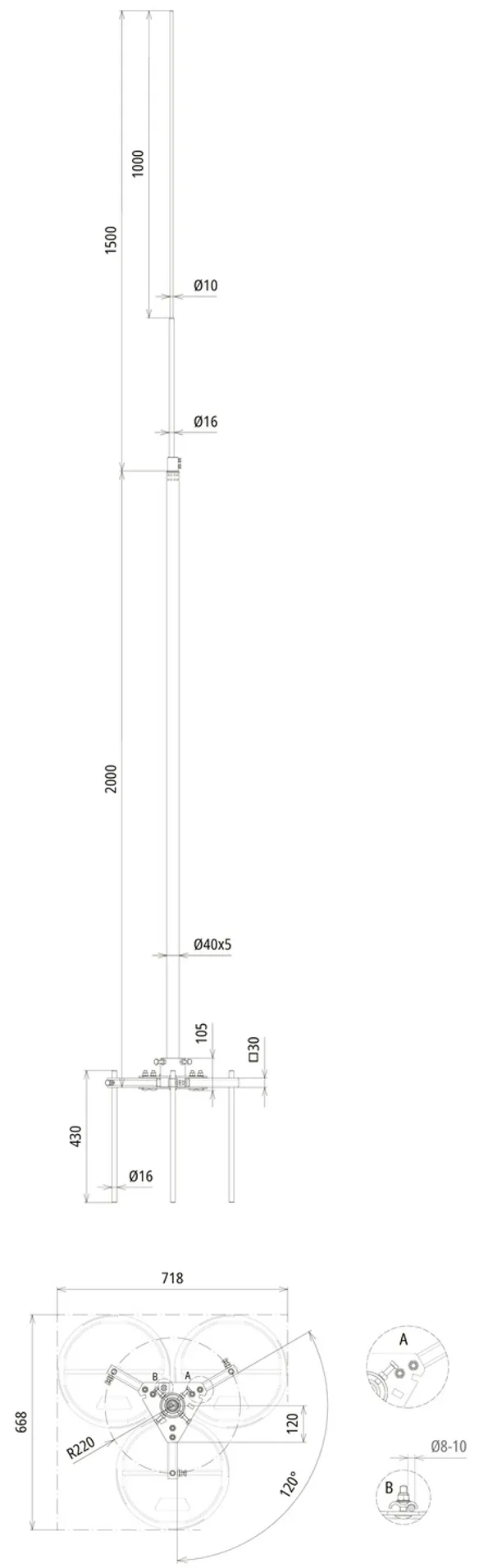

Self-supporting air-termination rod; height: 3,500 mm
Self-supporting air-termination rods with tripod
for protecting roof-mounted structures,
Adjustable to the roof slope up to max. 10 degrees.
The air-termination rods are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
The stackable concrete base (Part No. 102 010) and
the plastic base plate (Part No. 102 050) must be ordered
separately.
Height: 3,500 mm
Radius: 220 mm
Space requirements for stand with concrete base of 17 kg: 668 x 718 mm
Material of air-termination rod: Al
Stand material: HDG steel
Standard: DIN EN 62561-(1+2)
Height: 3500 mm
Radius: 220 mm
Space required for tripod: 668 x 718 mm
Material of air-termination rod: Al
Material of tripod: St/tZn
Standard: EN 62561-(1+2)

Brand: DEHN
Type: FS D40 16 10 3500 AL DBS KB STTZN
Part No.: 105536
or equivalent.



Datos técnicos

Height 3500 mm
Radius 220 mm
Space required for tripod (l x w) 668 x 718 mm
Material of air-termination rod Al
Material of tripod St/tZn
Standard EN 62561-(1+2)

Se ha añadido el artículo 105536 a favoritos.

Ir a favoritos

El artículo 105536 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
