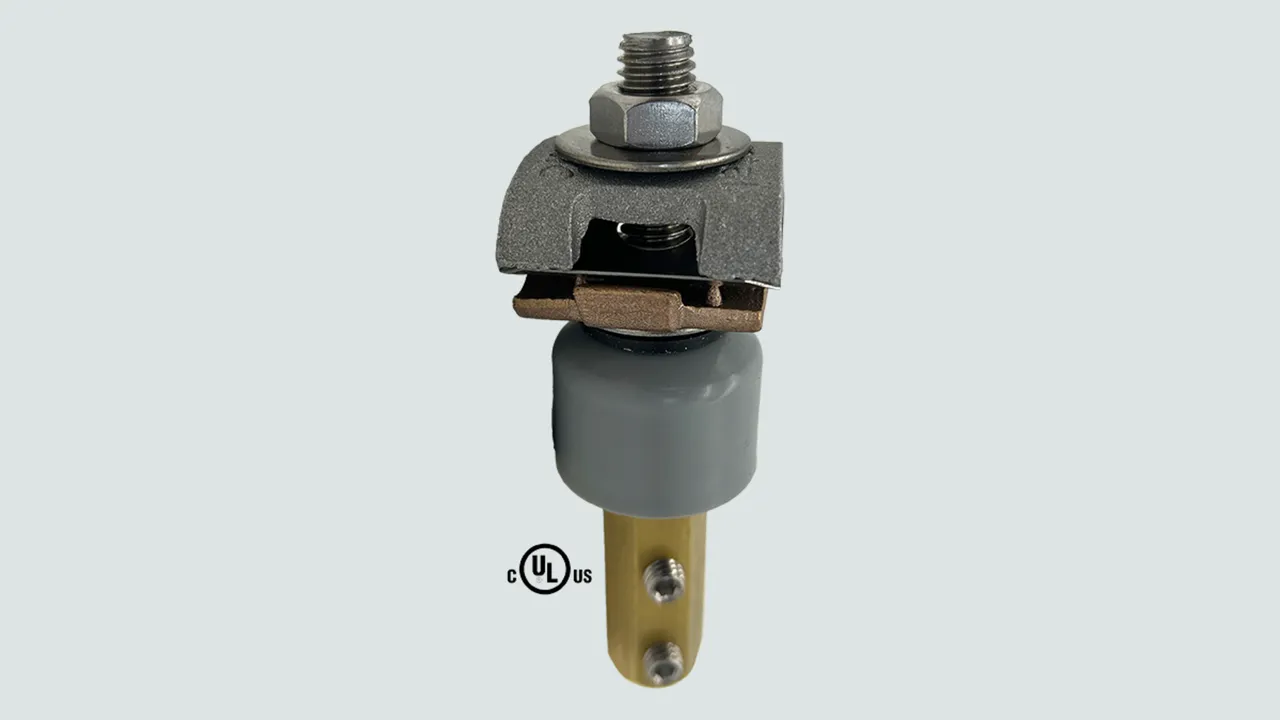

DEHNclamp - Thru Assemblies & Accessories
:quality(98)/www.dehn.mx/store/f/58887294/HDVORSCHAU/Collage16-9_thru_wall.jpg)
:quality(98)/www.dehn.mx/store/f/58887294/HDVORSCHAU/Collage16-9_thru_wall.jpg)
For interconnecting exposed and concealed conductors.

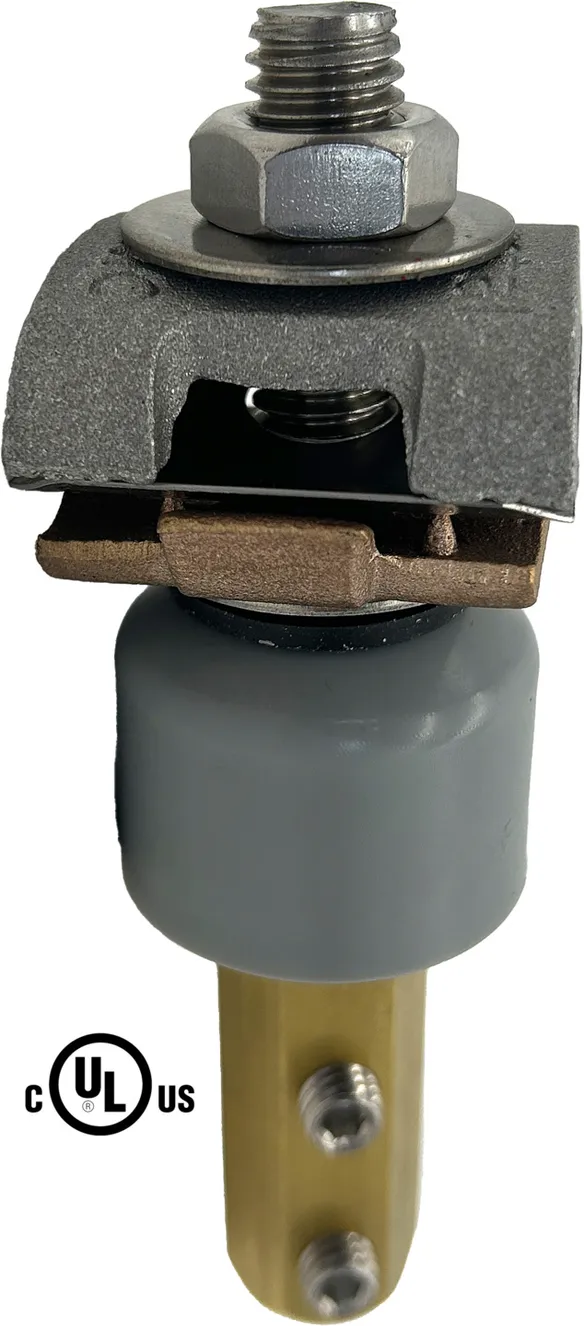

N.º art. 218460 BM 1'' PVC CA
GTIN 4013364518285, N.º de arancel aduanero (EU): 85359000, Peso bruto: 6.00 OZ, Empaquetado: 10.00 pc(s)
Figuras
:quality(98)/www.dehn.mx/store/f/58887297/HDVORSCHAU/218460.jpg)
:quality(98)/www.dehn.mx/store/f/58887297/HDVORSCHAU/218460.jpg)
:quality(98)/www.dehn.mx/store/f/58887298/HDVORSCHAU/218460_m_us.jpg)
:quality(98)/www.dehn.mx/store/f/58887298/HDVORSCHAU/218460_m_us.jpg)
Datos técnicos
| Material | Bimetal: Aluminum (minimum 85%) / Brass (minimum 60%) |
| Conductor material | Alumium, Galvanized Steel, Stainless steel, Steel |
| Clamping range stranded cable | 7/16-19/32 in. (50-107 mm2) |

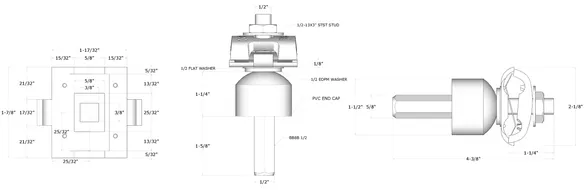

| Dimensions | 5-1/4 x 2-1/2 in (1.33 x 6.35 cm) |
| Standards | UL 96 |
| Classification | Class 1 + 2 |
| Weight (Metric) | 170 g |
