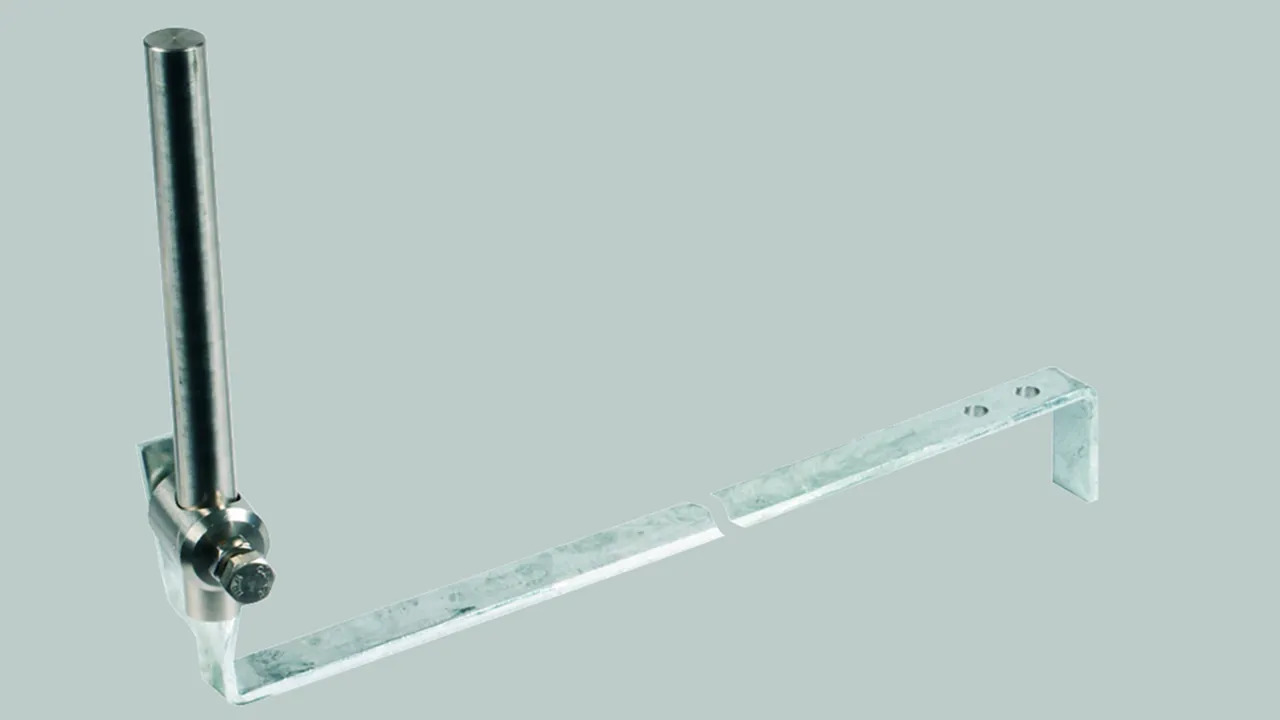

Rod Holder for Gable Roofs

Base for fixing air-termination rods on steep roofs, with anti-rotation protection (toothed lock washer) and lock nut as well as boreholes for screwing the brace onto the roof battens.
At the chimney, the air-termination rod requires additional fixing e.g. by means of DEHNiso spacer.

1 Producto

N.º art. 223005 SH BB16 L475 WS V2A STTZN

GTIN 4013364099937, N.º de arancel aduanero (EU): 85389099, Peso bruto: 481.30 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Rod holder for steep roofs
Rod holder for steep roofs as base for fixing
air-termination rods on steep roofs, with
anti-rotation protection.
At the chimney, the air-termination rod requires
additional fixing e.g. by means of DEHNiso spacer.
Material of brace: St/tZn
Material of bolt: StSt
Length of brace: 475 mm
Conductor support Rd: 16 mm

Brand: DEHN
Type: SH BB16 L475 WS V2A STTZN
Part No.: 223005
or equivalent.



Datos técnicos

Material of brace St/tZn
Material of bolt StSt
Length of brace 475 mm
Conductor support Rd 16 mm
